Product Details

Description

Application

470 MHZ
24 VOLTS
EFFICIENCY 50% MIN.
P_OUT= 15 W WITH 11.0 dB MIN. GAIN
CLASS AB
COMMON EMITTER

Pinout

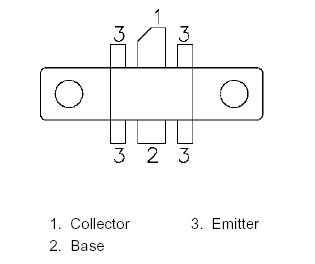

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_CBO	Collector-Base Voltage	48	V
V_CEO	Collector-Emitter Voltage	25	V
V_EBO	Emitter-Base Voltage	3.5	V
I_C	Collector Current	2.5	A
P_DISS	Power Dissipation ( +25^°C)	29	W
T_J	Junction Temperature	+200	^°C
T_STG	Storage Temperature	- 65 to +150	^°C

Description

The SD1391 is a gold metallized NPN planar transistor using diffused emitter ballast resistors for reliability and ruggedness. The SD1391 is specifically designed as a low power, high gain driver and can be operated in Class A, B or C.
