SD1528-08

Features: .DESIGNED FOR HIGH POWER PULSED IFF, DME, TACAN APPLICATIONS.20 WATTS (typ.) IFF 1030 - 1090 MHz.15 WATTS (min.) DME 1025 - 1150 MHz.15 WATTS (typ.) TACAN 960 - 1215 MHz.10 dB MIN. GAIN.REFRACTORY GOLD METALLIZATION.EMITTER BALLASTING AND LOW THERMAL RESISTANCE.20:1 LOAD VSWR CAPABILITY ...

product image

SD1528-08 Picture
See larger image
SeekIC No. : 004486372 Detail

SD1528-08: Features: .DESIGNED FOR HIGH POWER PULSED IFF, DME, TACAN APPLICATIONS.20 WATTS (typ.) IFF 1030 - 1090 MHz.15 WATTS (min.) DME 1025 - 1150 MHz.15 WATTS (typ.) TACAN 960 - 1215 MHz.10 dB MIN. GAIN.RE...

SD1528-08 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD1528-08
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

.DESIGNED FOR HIGH POWER PULSED IFF, DME, TACAN APPLICATIONS
.20 WATTS (typ.) IFF 1030 - 1090 MHz
.15 WATTS (min.) DME 1025 - 1150 MHz
.15 WATTS (typ.) TACAN 960 - 1215 MHz
.10 dB MIN. GAIN
.REFRACTORY GOLD METALLIZATION
.EMITTER BALLASTING AND LOW THERMAL RESISTANCE
.20:1 LOAD VSWR CAPABILITY AT SPECIFIED OPERATING CONDITIONS
.INPUT MATCHED, COMMON BASE CONFIGURATION

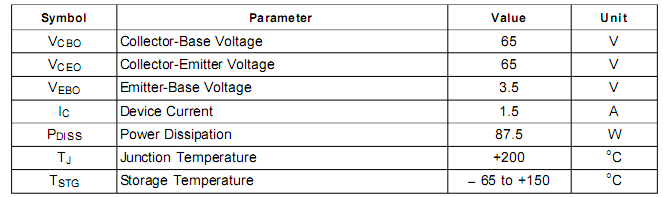

Specifications

Connection Diagram


Description

The SD1528-08 is a gold metallized, silicon NPN power transistor. The SD1528-08 is designed for applications requiring high peak power and low duty cycles such as IFF, DME and TACAN. The SD1528-08 is packaged in the .250" input matched hermetic stripline flange package resulting in im-proved broadband performance and a low thermal resistance.
