SD2904: MOSFET N-Ch 65 Volt 5 Amp

SD2904 Data Sheet

Get Latest Price

Part Number:: SD2904
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SD2900 evaluate
Transistors RF MOSFET Power N-Ch 65 Volt 0.9 Amp
SD290-11-31-241 evaluate
US $77.23 - 93.32 / Piece

PHOTODIODE LOCAP 7.6X5.6MM TO-8
SD290-12-22-241 evaluate
US $105.51 - 122.39 / Piece

PHOTODIODE BLUE 5.6X7.6MM TO-8

Product Details

Quick Details

Transistor Polarity :	N-Channel	Drain-Source Breakdown Voltage :	65 V
Gate-Source Breakdown Voltage :	+/- 20 V	Continuous Drain Current :	5 A
Configuration :	Single Dual Source	Maximum Operating Temperature :	+ 200 C
Package / Case :	Case M-113	Packaging :	Bulk

Description

Resistance Drain-Source RDS (on) :
Mounting Style :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Packaging : Bulk
Continuous Drain Current : 5 A
Configuration : Single Dual Source
Maximum Operating Temperature : + 200 C
Package / Case : Case M-113
Drain-Source Breakdown Voltage : 65 V

Pinout

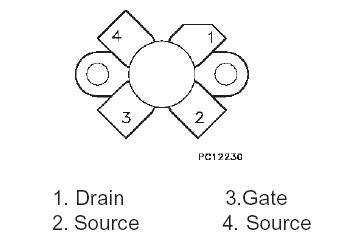

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_(BR)DSS	Drain Source Voltage	65	V
V_DGR	Drain-Gate Voltage (R_GS = 1M)	65	V
V_GS	Gate-Source Voltage	±20	V
I_D	Drain Current	5	A
P_DISS	Power Dissipation	100	W
T_j	Max. Operating Junction Temperature	200
T_STG	Storage Temperature	-65 to 150

Description

The SD2904 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 28 V DC large signal applications up to 500 MHz

Parameters:

Technical/Catalog Information	SD2904
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	65V
Current Rating	5A
Package / Case	M113
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD2904 SD2904 497 5465 ND 4975465ND 497-5465
