SD2918, US $ 21.67-28.64 , STMicroelectronics, SD2918 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00148352 Detail

SD2918: MOSFET N-Ch 125 Volt 6 Amp

SD2918 Data Sheet

US $ 21.67~28.64 / Piece | Get Latest Price

Part Number:: SD2918
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~100
100~250

Unit Price
$28.64
$24.77
$23.22
$21.67

Processing time
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SD2900 evaluate
Transistors RF MOSFET Power N-Ch 65 Volt 0.9 Amp
SD290-11-31-241 evaluate
US $77.23 - 93.32 / Piece

PHOTODIODE LOCAP 7.6X5.6MM TO-8
SD290-12-22-241 evaluate
US $105.51 - 122.39 / Piece

PHOTODIODE BLUE 5.6X7.6MM TO-8

Product Details

Quick Details

Transistor Polarity :	N-Channel	Drain-Source Breakdown Voltage :	125 V
Gate-Source Breakdown Voltage :	+/- 20 V	Continuous Drain Current :	6 A
Configuration :	Single Dual Source	Maximum Operating Temperature :	+ 200 C
Package / Case :	Case M-113	Packaging :	Bulk

Description

Resistance Drain-Source RDS (on) :
Mounting Style :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Continuous Drain Current : 6 A
Packaging : Bulk
Configuration : Single Dual Source
Drain-Source Breakdown Voltage : 125 V
Maximum Operating Temperature : + 200 C
Package / Case : Case M-113

Pinout

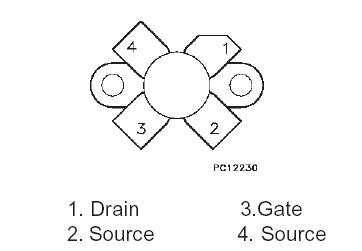

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_(BR)DSS	Drain Source Voltage	125	V
V^DGR	Drain-Gate Voltage (R_GS = 1M)	125	V
V_GS	Gate-Source Voltage	±20	V
I_D	Drain Current	6	A
P_DISS	Power Dissipation	175	W
T_j	Max. Operating Junction Temperature	200
T_STG	Storage Temperature	-65 to 150

Description

The SD2918 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 50 V DC large signal applications up to 200 MHz

Parameters:

Technical/Catalog Information	SD2918
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	125V
Current Rating	6A
Package / Case	M113
Packaging	Tube
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD2918 SD2918 497 5466 ND 4975466ND 497-5466

Customers Who Bought This Item Also Bought

SD2918 RF POWER TRANSISTORS HF/VHF/UHF N-CHANNEL MOSFETs
US $$37.00 - 40.00 / Piece

Supply Ability:100Day

View details
SD2931-10 SD2931 RF POWER TRANSISTORS HF/VHF/UHF N-CHANNEL MOSFETs - S
US $$26.00 - 30.00 / Piece

Supply Ability:500Week

View details
SD2931-11 RF Power Transistor FOR HOT SALE high-quality
US $$30.00 - 35.00 / Piece

Supply Ability:100Week

View details
SD2931-11
US $$10.00 - 100.00 / Piece

Supply Ability:10000Week

View details
SD2932
US $$95.00 - 100.00 / Piece

Supply Ability:10000Week

View details

Margin,quality,low-cost products with low minimum orders. Secure your online payments with SeekIC Buyer Protection.

SD2918

product image

floor Price/Ceiling Price

Price Break

Month Sales

Rating

Payment Methods

Recent History

Quick Details

Description

Customers Who Bought This Item Also Bought

Connectors, Interconnects(19973)

Resistors(1299)

Static Control, ESD, Clean Room Products(496)

Capacitors(4587)

Motors, Solenoids, Driver Boards/Modules(2035)

Undefined Category(248)
