Part Number: SD2921-10



MFG: ST

Package Cooled: M174



Description: The SD2921-10 is a gold metallized N-Channel MOS field-effect RF power transistor. Being electrically ...


Urgent Purchase

SD2921-10 General Description


The SD2921-10 is a gold metallized N-Channel MOS field-effect RF power transistor. Being electrically identical to the standard SD2921 MOSFET, it is intended for use in 50V dc large signal applications up to 200 MHz.

The SD2921-10 is mechanical compatible to the SD2921 but it offers in addition a better thermal capability (25% lower thermal resistance), representing the best-in-class transistor for ISM applications.

SD2921-10 Maximum Ratings

Symbol Parameter Value Unit
V(BR)DSS Drain Source Voltage 125 V
VDGR Drain-Gate Voltage (RGS = 1M) 125 V
VGS Gate-Source Voltage ±20 V
ID Drain Current 20 A
PDISS Power Dissipation 389 W
Tj Max. Operating Junction Temperature 200
TSTG Storage Temperature -65 to 150

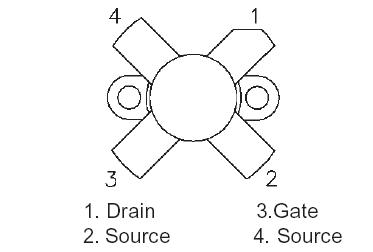

SD2921-10 Connection Diagram

SD2921-10 Connection Diagram

SD2921-10 datasheet

SD2921-10
PDF/DataSheet Download

  • Datasheet: SD2921-10
  • File Size: 200036 KB
  • Manufacturer: STMICROELECTRONICS [STMicroelectronics]
  • Click here to Download
