Purchase SD2923, In-stock SD2923 From SeekIC.
MFG:ST
Part Number: SD2923
MFG: ST
Description: The SD2923 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 50 V DC large...
- Table of contents:
SD2923
-
Suppliers
DataSheet
General Description
SD2923 General Description
The SD2923 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 50 V DC large signal applications up to 150 MHz
SD2923 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| V(BR)DSS | Drain Source Voltage | 125 | V |
| VDGR | Drain-Gate Voltage (RGS = 1M) | 125 | V |
| VGS | Gate-Source Voltage | ±20 | V |
| ID | Drain Current | 40 | A |
| PDISS | Power Dissipation | 648 | W |
| Tj | Max. Operating Junction Temperature | 200 | |
| TSTG | Storage Temperature | -65 to 150 |

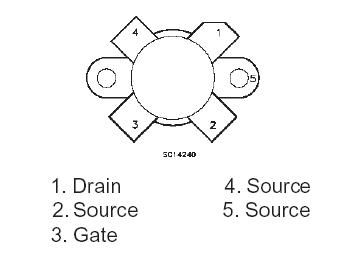

SD2923 Connection Diagram
SD2923
PDF/DataSheet Download
- Datasheet: SD2923
- File Size: 109650 KB
- Manufacturer: STMICROELECTRONICS [STMicroelectronics]
- Click here to Download
