SD2931: Transistors RF MOSFET Power N-Ch 125 Volt 20A

SD2931 Data Sheet

Get Latest Price

Part Number:: SD2931
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SD2900 evaluate
Transistors RF MOSFET Power N-Ch 65 Volt 0.9 Amp
SD290-11-31-241 evaluate
US $77.23 - 93.32 / Piece

PHOTODIODE LOCAP 7.6X5.6MM TO-8
SD290-12-22-241 evaluate
US $105.51 - 122.39 / Piece

PHOTODIODE BLUE 5.6X7.6MM TO-8

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	N-Channel
Frequency :	230 MHz	Gain :	15 dB at 175 MHz
Output Power :	150 W	Drain-Source Breakdown Voltage :	125 V
Continuous Drain Current :	20 A	Gate-Source Breakdown Voltage :	+/- 20 V
Maximum Operating Temperature :	+ 150 C	Package / Case :	M174
Packaging :	Bulk

Description

Configuration : Single
Transistor Polarity : N-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 125 V
Gate-Source Breakdown Voltage : +/- 20 V
Output Power : 150 W
Packaging : Bulk
Continuous Drain Current : 20 A
Package / Case : M174
Frequency : 230 MHz
Gain : 15 dB at 175 MHz

Pinout

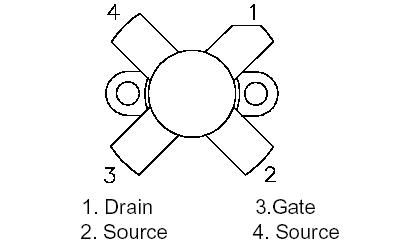

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_(BR)DSS	Drain Source Voltage	125	V
V_DGR	Drain-Gate Voltage (R_GS = 1M)	125	V
V_GS	Gate-Source Voltage	±20	V
I_D	Drain Current	16	A
P_DISS	Power Dissipation	292	W
T_j	Max. Operating Junction Temperature	200
T_STG	Storage Temperature	-65 to 150

Description

The SD2931 is a gold metallized N-Channel MOS field-effect RF power transistor. The SD293 1 is intended for use in 50V dc large signal applications up to 230 MHz

Parameters:

Technical/Catalog Information	SD2931
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	125V
Current Rating	20A
Package / Case	M244
Packaging	Tray
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD2931 SD2931

Customers Who Bought This Item Also Bought

SD2918 RF POWER TRANSISTORS HF/VHF/UHF N-CHANNEL MOSFETs
