Description: The SD2932 is a gold metallized N-Channel MOS field-effect RF power transistor. The SD2932 is intended...


Urgent Purchase

SD2932 General Description


The SD2932 is a gold metallized N-Channel MOS field-effect RF power transistor. The SD2932 is intended for use in 50V dc large signal applications up to 250 MHz

SD2932 Maximum Ratings

Symbol Parameter Value Unit
V(BR)DSS Drain Source Voltage 125 V
VDGR Drain-Gate Voltage (RGS = 1M) 125 V
VGS Gate-Source Voltage ±20 V
ID Drain Current 40 A
PDISS Power Dissipation 500 W
Tj Max. Operating Junction Temperature 200
TSTG Storage Temperature -65 to 150

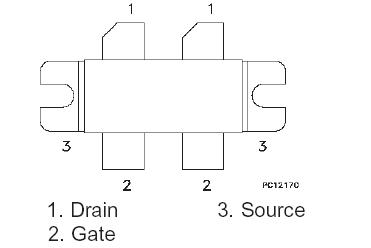

SD2932 Connection Diagram

SD2932 Connection Diagram
