SD4011

Transistors RF Bipolar Power NPN 65 Volt 31.8W

product image

SD4011 Picture
See larger image
SeekIC No. : 00218344 Detail

SD4011: Transistors RF Bipolar Power NPN 65 Volt 31.8W

SD4011 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD4011
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Collector- Emitter Voltage VCEO Max : 65 V
Emitter- Base Voltage VEBO : 3.5 V Continuous Collector Current : 1.59 A
Maximum DC Collector Current : 1.59 A Power Dissipation : 31.8 W
Package / Case : M122 Packaging : Tube

Description

Maximum Operating Frequency :
Packaging : Tube
Configuration : Single
Emitter- Base Voltage VEBO : 3.5 V
Collector- Emitter Voltage VCEO Max : 65 V
Continuous Collector Current : 1.59 A
Maximum DC Collector Current : 1.59 A
Power Dissipation : 31.8 W
Package / Case : M122


Application

GOLD METALLIZATION
INTERNAL INPUT MATCHING
COMMON EMITTER
OVERLAY GEOMETRY
CLASS A OPERATION
METAL/CERAMIC PACKAGE
POUT = 4 W MIN. WITH 8 dB GAIN


Pinout

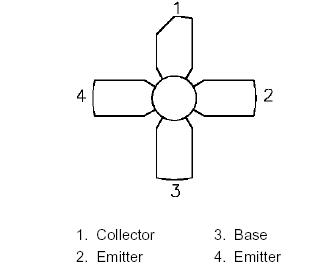

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCBO Collector-Base Voltage 65 V
VCES Collector-Emitter Voltage 65 V
VEBO Emitter-Base Voltage 3.5 V
IC Device Current 1.59 A
PDISS Power Dissipation 31.8 W
TJ Junction Temperature +200 °C
TSTG Storage Temperature - 65 to +150 °C



Description

The SD4011 is a gold metallized NPN silicon bipolar device optimized for Class A operation in TV Band IV/V.

Suitable for a variety of other UHF linear applications, SD4011 is supplied in an industry-standard .280 stud package.
