SD4590

Configuration : Single
Packaging : Bulk
Emitter- Base Voltage VEBO : 3.5 V
Collector- Emitter Voltage VCEO Max : 28 V
Continuous Collector Current : 25 A
Maximum Operating Frequency : 960 MHz
Maximum DC Collector Current : 25 A
Power Dissipation : 300 W
Package / Case : M208

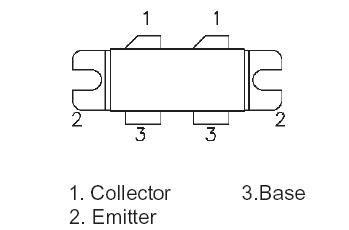

Pinout




Specifications

Symbol	Parameter	Value	Unit
VCBO	Collector-Base Voltage	65	V
VCEO	Collector-Emitter Voltage	28	V
VEBO	Emitter-Base Voltage	3.5	V
IC	Device Current	25	A
PDISS	Power Dissipation	300	W
TJ	Max. Operating Junction Temperature	+200	°C
TSTG	Storage Temperature	- 65 to +150	°C

Description

The SD4590 is designed for both analog and digital cellular base stations over the 800 to 960 MHz frequency range, specifically those systems requiring the high linearity and efficiency afforded by class AB operation. Integrated input/output of SD4590 pre-matching simplifies amplifier design. Ruggedness, MTTF, and linearity are enhanced using diffused emitter resistors and refractory/gold metallization.
