SD4600

Transistors RF Bipolar Power 860-960MHz Power

product image

SD4600 Picture
See larger image
SeekIC No. : 00218355 Detail

SD4600: Transistors RF Bipolar Power 860-960MHz Power

SD4600 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD4600
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Configuration : Single Maximum Operating Frequency : 960 MHz
Collector- Emitter Voltage VCEO Max : 28 V Emitter- Base Voltage VEBO : 3.5 V
Continuous Collector Current : 8 A Maximum DC Collector Current : 8 A
Power Dissipation : 146 W Package / Case : M173
Packaging : Bulk

Description

Configuration : Single
Packaging : Bulk
Power Dissipation : 146 W
Emitter- Base Voltage VEBO : 3.5 V
Collector- Emitter Voltage VCEO Max : 28 V
Continuous Collector Current : 8 A
Package / Case : M173
Maximum DC Collector Current : 8 A
Maximum Operating Frequency : 960 MHz


Application

GOLD METALLIZATION
860-960 MHz
26 VOLTS
EFFICIENCY 50% MIN.
POUT = 60 W MIN. WITH 7.5 dB GAIN


Pinout

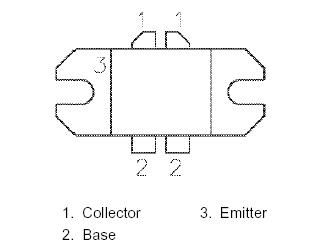

Connection Diagram


Specifications

Symbol Parameter Value Unit
VCBO Collector-Base Voltage 60 V
VCEO Collector-Emitter Voltage 28 V
VEBO Emitter-Base Voltage 3.5 V
IC Device Current 8 A
PDISS Power Dissipation 146 W
TJ Junction Temperature +200 °C
TSTG Storage Temperature - 65 to +150 °C



Description

The SD4600 is designed for 960MHz mobile base stations in both analog and digital applications. Including double input and output matching networks, the SD4600 features high impedances allowing operation over the full 860 to 960 MHz bandwidth.
