General Description
SD5000I-2 General Description
The SD5000I-2 monolithic switch features four individual double-diffused enhancement-mode MOSFETs built on a common substrate. This bidirectional device provides low on-resistance and low interelectrode capacitances to minimize insertion loss and crosstalk.
Built on Vishay Siliconix' proprietary DMOS process, the SD5000I-2 utilizes lateral construction to achieve low capacitance and ultra-fast switching speeds. For manufacturing reliability, these devices feature poly-silicon gates protected by Zener diodes.
The SD5000I is available only in the "2" extended hi-rel flow. The Vishay Siliconix "2" flow complies with the requirements of MIL-PRF-19500 for JANTX discrete devices.
SD5000I-2 Maximum Ratings
Gate-Drain, Gate-Source Voltage . . . . . . . . . . . . . . . . .. . . . . . . +30 V/25 V
Gate-Substrate Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +30 V/0.3 V
Drain-Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 V
Drain-Source-Substrate Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Lead Temperature (1/16" from case for 10 seconds) . . . . . . . . . . . . . 300
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 65 to 150
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 55 to 150
Power Dissipationa, b: (Package) . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mW
(Each Device) . . . . . . . . . . . . . . . . . . . . . . . 300 mW
Notes:
a. Derate 4 mW/ above 25
Gate-Substrate Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +30 V/0.3 V
Drain-Source Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 V
Drain-Source-Substrate Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25 V
Drain Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 mA
Lead Temperature (1/16" from case for 10 seconds) . . . . . . . . . . . . . 300
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . 65 to 150
Operating Junction Temperature . . . . . . . . . . . . . . . . . . . . . . . 55 to 150
Power Dissipationa, b: (Package) . . . . . . . . . . . . . . . . . . . . . . . . . . 500 mW
(Each Device) . . . . . . . . . . . . . . . . . . . . . . . 300 mW
Notes:
a. Derate 4 mW/ above 25
SD5000I-2 Features
`Quad SPST Switch with Zener Input Protection
` Low Interelectrode Capacitance and Leakage
` Ultra-High Speed Switching-tON: 1 ns
` Ultra-Low Reverse Capacitance: 0.2 pF
` Low Guaranteed rDS @ 5 V
` Low Turn-On Threshold Voltage
` Low Interelectrode Capacitance and Leakage
` Ultra-High Speed Switching-tON: 1 ns
` Ultra-Low Reverse Capacitance: 0.2 pF
` Low Guaranteed rDS @ 5 V
` Low Turn-On Threshold Voltage
SD5000I-2 Typical Application
· Fast Analog Switch
· Fast Sample-and-Holds
· Pixel-Rate Switching
· Video Switch
· Multiplexer
· DAC Deglitchers
· High-Speed Driver
· Fast Sample-and-Holds
· Pixel-Rate Switching
· Video Switch
· Multiplexer
· DAC Deglitchers
· High-Speed Driver

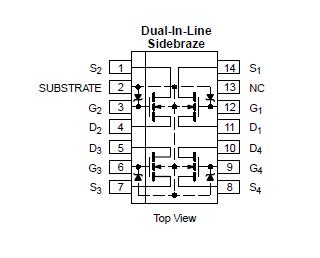

SD5000I-2 Connection Diagram
