Description



Features:

Plastic package has Underwriters Laboratory Flammability Classification 94V-O
For surface mounted applications
Low profile package
Built-in strain relief
Low power loss, High efficiency
High surge capacity
For use in low voltage high frequency inverters, free wheeling, and polarity protection applications
High temperature soldering guaranteed:260¢XC/10 seconds at terminals

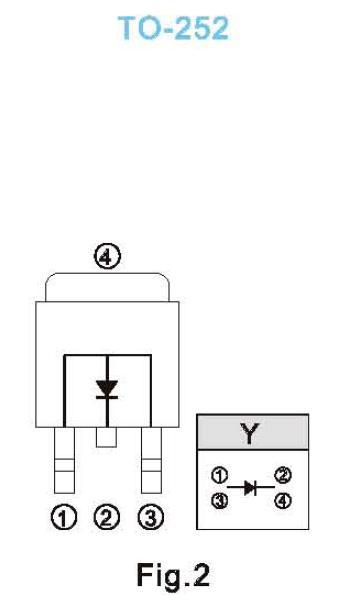

Pinout






Specifications

SD520YS SD530YS SD540YS SD550YS SD560YS SD580YS SD5100YS UNITS
Maximum Recurrent Peak Reverse Voltage 20 30 40 50 60 80 100 V
Maximum RMS Voltage 14 21 28 35 42 56 70 V
Maximum DC Blocking Voltage 20 30 40 50 60 80 100 V
Maximum Average Forward Rectified Current at Tc=75°C 5 A
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) 100 A
Maximum Instantaneous Forward Voltage at 5.0A (Note 1) 0.55 0.75 0.85 V
Maximum DC Reverse Current at Tc=25°C
DC Blocking Voltage per element Tc=100°C		 0.2
20		 mA
Maximum Thermal Resistance (Note 2) 80 °C/W
Operating and Storage Temperature Range -55 to +125 °C
Storage Temperature Range -65 to +150 °C
