Part Number: SD56120
Description: The SD56120 is a common source N-Channel enhancement-mode lateral Field-Effect RF power transistor des...
- Table of contents:
SD56120
-
Suppliers
DataSheet
General Description
SD56120 General Description
The SD56120 is a common source N-Channel enhancement-mode lateral Field-Effect RF power transistor designed for broadband commercial and industrial applications at frequencies up to 1.0 GHz. The SD56120 is designed for high gain and broadband performance operating in common source mode at 28V. It is ideal for broadcast applications from 470 to 860 MHz requiring high linearity.
SD56120 Maximum Ratings
| Symbol | Parameter | Value | Unit |
| V(BR)DSS | Drain Source Voltage | 65 | V |
| VGS | Gate-Source Voltage | ± 20 | V |
| ID | Device Current | 14 | A |
| PDISS | Power Dissipation (@ Tc= 70oC) | 260 | W |
| TJ | Max. Operating Junction Temperature | 200 | °C |
| TSTG | Storage Temperature | - 65 to +150 | °C |

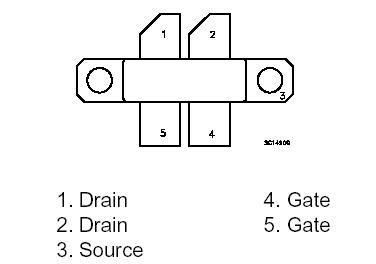

SD56120 Connection Diagram
SD56120
