SDB0530

Features: • Low forward voltage: VFM=0.47V Max @ IF=500mA• Small size package: SOD-323• Large Forward current: IF=500mA Max.• Low switching lossApplication• High speed switching• Low loss rectificationPinoutSpecifications Characteristic Symbol Rating ...

product image

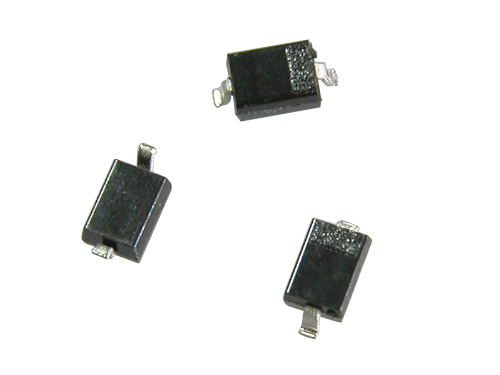

SDB0530 Picture
See larger image
SeekIC No. : 004486923 Detail

SDB0530: Features: • Low forward voltage: VFM=0.47V Max @ IF=500mA• Small size package: SOD-323• Large Forward current: IF=500mA Max.• Low switching lossApplication• High speed ...

SDB0530 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDB0530
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low forward voltage: VFM=0.47V Max @ IF=500mA
• Small size package: SOD-323
• Large Forward current: IF=500mA Max.
• Low switching loss




Application

• High speed switching
• Low loss rectification




Pinout

Connection Diagram






Specifications

Characteristic
Symbol
Rating
Unit
Peak reverse voltage
VRM
30
V
Forward current
IF
500
mA
Peak surge forward current
(Non-repetitive 60Hz sine wave)
IFSM
3
A
Power dissipation
PD
200
mW
Junction temperature
TJ
150
°C
Storage temperature range
Tstg
-55 ~ 150
°C
Device mounted on glass epoxy PCB (recommanderable minimum solder land)




Description

High Current Capability and Low Forward Voltage Drop SDB0530
SDB0530 is enhanced with lower VF and higher surge to provide lower power loss and higher efficiency. Also this production provides the ultimate efficiency in power conversion and power switching applications. The applications of SDB0530 are power supply output rectifications and SMPS applications
