SDB10150PI

Features: • Dual chip common cathode• Low forward voltage & low reverse current• Low switching lossApplication• High speed switching and rectification• Switching mode power supplyPinoutSpecifications Characteristic Symbol Rating Unit Repetitive pe...

product image

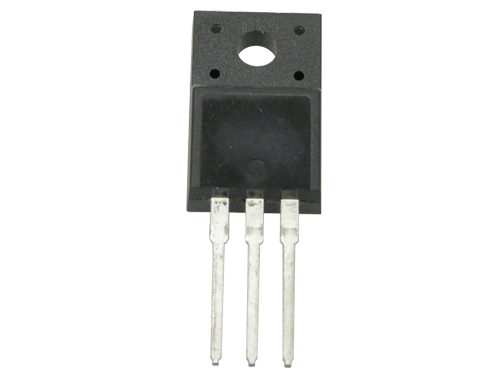

SDB10150PI Picture
See larger image
SeekIC No. : 004486929 Detail

SDB10150PI: Features: • Dual chip common cathode• Low forward voltage & low reverse current• Low switching lossApplication• High speed switching and rectification• Switching mo...

SDB10150PI Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDB10150PI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Dual chip common cathode
• Low forward voltage & low reverse current
• Low switching loss




Application

• High speed switching and rectification
• Switching mode power supply




Pinout



Connection Diagram




Specifications

Characteristic
Symbol
Rating
Unit
Repetitive peak reverse voltage
VRRM
100
V
Average rectified output current
IO
10
A
Peak forward surge current
(Non-repetitive 60Hz sine wave)
IFSM
120
A
Junction temperature
TJ
150
°C
Storage temperature range
Tstg
-55 ~ 150
°C





Description

High Current Capability and Low Forward Voltage Drop SDB10150PI
SDB10150PI is enhanced with lower VF and higher surge to provide lower power loss and higher efficiency. Also SDB10150PI provides the ultimate efficiency in power conversion and power switching applications. The applications are power supply output rectifications and SMPS applications
