SDB1040PH

Features: • Low forward voltage: VFM=0.55V Max. @ IF=10A• Low reverse current: IRRM=2mA Max. @ VR=40V• Low switching lossApplication• Switching mode power supply• Converter & chopperPinoutSpecifications Characteristic Symbol Rating Unit Repetitive...

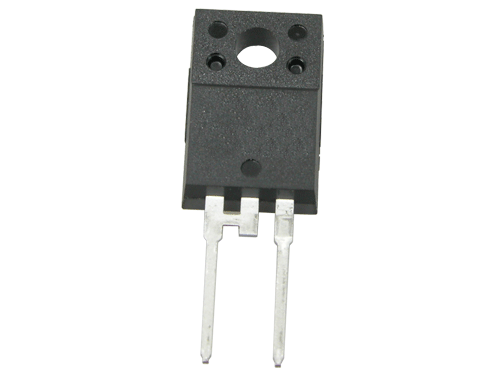

product image

SDB1040PH Picture
See larger image
SeekIC No. : 004486935 Detail

SDB1040PH: Features: • Low forward voltage: VFM=0.55V Max. @ IF=10A• Low reverse current: IRRM=2mA Max. @ VR=40V• Low switching lossApplication• Switching mode power supply• Conve...

SDB1040PH Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDB1040PH
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low forward voltage: VFM=0.55V Max. @ IF=10A
• Low reverse current: IRRM=2mA Max. @ VR=40V
• Low switching loss




Application

• Switching mode power supply
• Converter & chopper




Pinout






Specifications

Characteristic
Symbol
Rating
Unit
Repetitive peak reverse voltage
VRRM
40
V
Average rectified output current
IO
10
A
Peak forward surge current
(Non-repetitive 60Hz sine wave)
IFSM
120
A
Junction temperature
TJ
150
°C
Storage temperature range
Tstg
-55 ~ 150
°C





Description

High Current Capability and Low Forward Voltage Drop SDB1040PH
SDB1040PH is enhanced with lower VF and higher surge to provide lower power loss and higher efficiency. Also SDB1040PH provides the ultimate efficiency in power conversion and power switching applications. The applications are power supply output rectifications and SMPS applications
