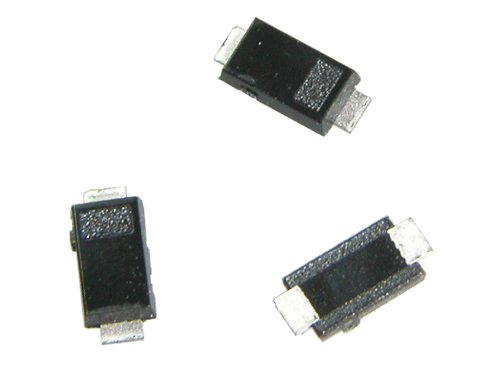

SDB130B
-
Suppliers
DataSheet
General Description
SDB130B Maximum Ratings
| Characteristic |
Symbol |
Rating |
Unit |
| Peak reverse voltage |
VRM |
30 |
V |
| Reverse voltage |
VR |
30 |
V |
| Forward current |
IF |
1.0 |
A |
| Peak surge forward current (Non-repetitive 60Hz sine wave) |
IFSM |
30 |
A |
| Junction temperature |
TJ |
150 |
°C |
| Storage temperature range |
Tstg |
-55 ~ 150 |
°C |
SDB130B Features
• Low switching loss
• High reliability
• Very low reverse current: IR=0.15mA Max. @ VR=30V
• Low forward voltage: VF=0.49V Max. @ IF=1A
• High reliability
• Very low reverse current: IR=0.15mA Max. @ VR=30V
• Low forward voltage: VF=0.49V Max. @ IF=1A
SDB130B Typical Application
• Portable equipment battery applications
• SMPS applications
• SMPS applications
SDB130B Connection Diagram
SDB130B
PDF/DataSheet Download
- Datasheet: SDB130B
- File Size: 297468 KB
- Manufacturer: AUK corp
- Click here to Download
