Purchase SDB2060PI, In-stock SDB2060PI From SeekIC.
- Table of contents:

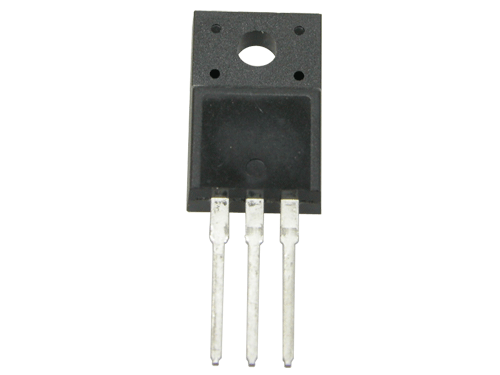

SDB2060PI
-
Suppliers
DataSheet
General Description
SDB2060PI Maximum Ratings
| Characteristic |
Symbol |
Rating |
Unit |
| Repetitive peak reverse voltage |
VRRM |
60 |
V |
| Average rectified output current |
IO |
20 |
A |
| Peak surge forward current (Non-repetitive 60Hz sine wave) |
IFSM |
120 |
A |
| Junction temperature |
TJ |
150 |
|
| Storage temperature range |
Tstg |
-55 ~ 150 |
SDB2060PI Features
• Low forward voltage: VFM=0.65V max.
• Low reverse current: IRRM=1.5mA max. @ VR=60V
• Low switching loss
• Low reverse current: IRRM=1.5mA max. @ VR=60V
• Low switching loss
SDB2060PI Typical Application
• Switching mode power supply application
• Converter & chopper application
• Converter & chopper application
