Features:

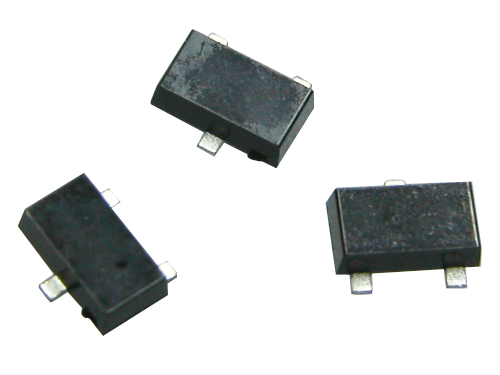

• SMD package : SOT-23F
• Low capacitance : C_T=0.25pF(Typ.)
• Low series resistance : rs=1.5(Typ.)
• VHF tuner band RF attenuator application
• AGC for FM tuner

Pinout

Connection Diagram

Specifications

Characteristic	Symbol	Rating	Unit
Continuous reverse voltage	V_R	50	V
Forward current	I_F	50	mA
Junction temperature	T_J	150	°C
Storage temperature range	T_stg	-55 ~ 150	°C

* : Unit ratings. Total rating = Unit rating × 1.5

Description

Best Combination of Efficiency, performance for High Frequency Switching

PIN diodes are used as high frequency band switch of TV Tuner, antenna switching module of cellular phone and Attenuator of RF Band Application Sets. Especially SDP510WMF is used RF attenuator of VHF Band for FM tuner, it also provide low capacitance and low series resistance and Two planar Pin diodes in series configuration in a SOT23F small SMD plastic package.
