SDP510WMUF

Features: • SMD package : SOT-323F• Low capacitance : CT=0.25pF(Typ.)• Low series resistance : rs=1.5Ω(Typ.)• VHF tuner band RF attenuator application• AGC for FM tunerPinoutSpecifications Characteristic Symbol Ratings Unit Continuous reverse ...

product image

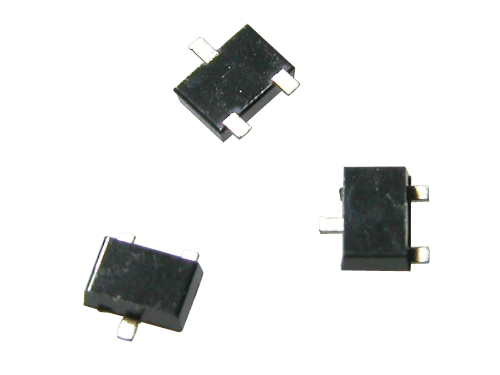

SDP510WMUF Picture
See larger image
SeekIC No. : 004487110 Detail

SDP510WMUF: Features: • SMD package : SOT-323F• Low capacitance : CT=0.25pF(Typ.)• Low series resistance : rs=1.5Ω(Typ.)• VHF tuner band RF attenuator application• AGC for FM...

SDP510WMUF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDP510WMUF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• SMD package : SOT-323F
• Low capacitance : CT=0.25pF(Typ.)
• Low series resistance : rs=1.5Ω(Typ.)
• VHF tuner band RF attenuator application
• AGC for FM tuner




Pinout

Connection Diagram






Specifications

Characteristic
Symbol
Ratings
Unit
Continuous reverse voltage
VR
50
V
Forward current
IF*
50
mA
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55 ~ 150
°C





Description

Best Combination of Efficiency, performance for High Frequency Switching
PIN diodes of the SDP510WMUF are used as high frequency band switch of TV Tuner, antenna switching module of cellular phone and Attenuator of RF Band Application Sets. Especially SDP510WMUF is used RF attenuator of VHF Band for FM tuner, it also provide low capacitance and low series resistance and Two planar Pin diodes in series configuration in a SOT323F small SMD plastic package.
