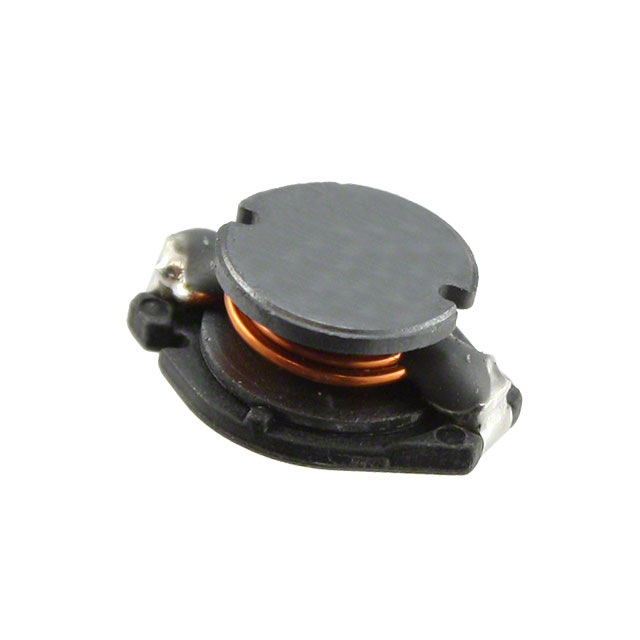

SDR1005-330ML: INDUCTOR 33UH SMD POWER

SDR1005-330ML Data Sheet

US $ .15~.15 / Piece | Get Latest Price

Part Number:: SDR1005-330ML
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~600

Unit Price
$.15

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SDR1005-100M evaluate
Power Inductors 10uH 5mm SMD
SDR1005-100ML evaluate
US $.17 - .37 / Piece

Power Inductors 10uH 20% SMD
SDR1005-101K evaluate
Power Inductors 100uH 10% SMD

Product Details

Quick Details

Series:	SDR1005	Manufacturer:	Bourns Inc.
Inductance:	33µH	Current:	1.8A
Current - Saturation:	2A	Current - Temperature Rise:	-
Type:	Ferrite Core	Tolerance:	±20%
Maximum Operating Temperature :	+ 140 C	Shielding:	Unshielded
DC Resistance (DCR):	120 mOhm Max	Q @ Freq:	25 @ 1MHz
Frequency - Self Resonant:	14MHz	Material - Core:	Ferrite
Package / Case:	0.500" L x 0.393" W x 0.197" H (12.70mm x 10.00mm x 5.00mm)	Mounting Type:	Surface Mount

Description

Current - Temperature Rise: -
Shielding: Unshielded
Mounting Type: Surface Mount
DC Resistance (DCR): 120 mOhm Max
Tolerance: ±20%
Type: Ferrite Core
Material - Core: Ferrite
Inductance: 33µH
Current: 1.8A
Q @ Freq: 25 @ 1MHz
Frequency - Self Resonant: 14MHz
Packaging: Tape & Reel (TR)
Current - Saturation: 2A
Manufacturer: Bourns Inc.
Series: SDR1005
Package / Case: 0.500" L x 0.393" W x 0.197" H (12.70mm x 10.00mm x 5.00mm)

Parameters:

Technical/Catalog Information	SDR1005-330ML
Vendor	Bourns Inc.
Category	Inductors, Coils, Chokes
Inductance	33H
Tolerance	±20%
Package / Case	0.500" L x 0.393" W x 0.197" H (12.70mm x 10.00mm x 5.00mm)
Packaging	Tape & Reel (TR)
Type	Ferrite Core
Current	1.8A
Mounting Type	Surface Mount
Q @ Freq	25 @ 1MHz
Self Resonant Freq	14MHz
DC Resistance (DCR)	120.0 mOhm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SDR1005 330ML SDR1005330ML
