SDS142WAF

Features: • SMD package : SOT-323F• Low forward voltage : VF=0.9V(Typ.)• Fast reverse recovery time : trr=1.6ns(Typ.)• Small total capacitance : CT=2.2pF(Typ.)• Ultra high speedPinoutSpecifications Characteristic Symbol Ratings Unit Maximum(peak) re...

product image

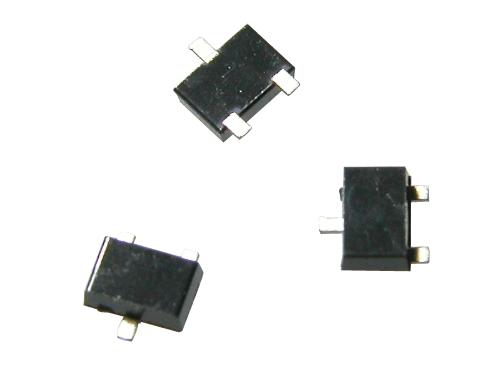

SDS142WAF Picture
See larger image
SeekIC No. : 004487159 Detail

SDS142WAF: Features: • SMD package : SOT-323F• Low forward voltage : VF=0.9V(Typ.)• Fast reverse recovery time : trr=1.6ns(Typ.)• Small total capacitance : CT=2.2pF(Typ.)• Ultra h...

SDS142WAF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDS142WAF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• SMD package : SOT-323F
• Low forward voltage : VF=0.9V(Typ.)
• Fast reverse recovery time : trr=1.6ns(Typ.)
• Small total capacitance : CT=2.2pF(Typ.)
• Ultra high speed




Pinout

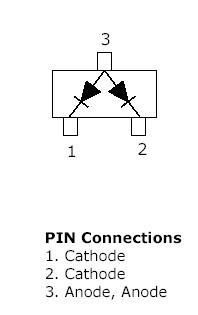

Connection Diagram




Specifications

Characteristic
Symbol
Ratings
Unit
Maximum(peak) reverse voltage
VRM
85
V
Reverse voltage
VR
80
V
Maximum(peak) forward current
IFM*
300
mA
Average forward current
IO*
100
mA
Surge current(10ms)
IFSM*
2
A
Power dissipation
PD
150
mW
Junction temperature
Tj
150
°C
Storage temperature
Tstg
-55 ~ 150
°C





Description

Ultra high speed switching application
It meets the requirements for low leakage current, low switching time, high variation for permitted current and small packages. more elements per package. This Diode of the SDS142WAF are used in all kinds of applications e.g. Safety, Cellular phones, TV chassis, Camcorder etc.
