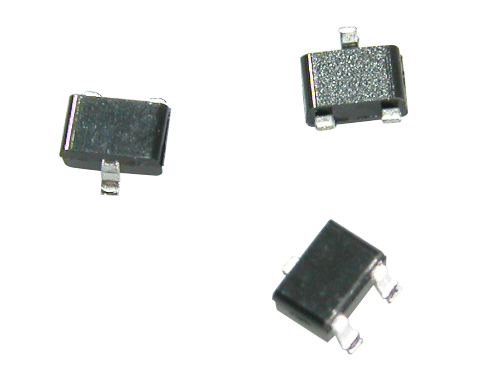

product image

SDS152K Picture
See larger image
SeekIC No. : 004487166 Detail

SDS152K: Features: • SMD package : SOT-323• Low forward voltage : VF=0.9V(Typ.)• Fast reverse recovery time : trr=1.6 ㎱(Typ.)• Small total capacitance : CT=2.2 ㎊(Typ.)Pi...

SDS152K Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDS152K
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• SMD package : SOT-323
• Low forward voltage : VF=0.9V(Typ.)
• Fast reverse recovery time : trr=1.6 ㎱(Typ.)
• Small total capacitance : CT=2.2 ㎊(Typ.)




Pinout

Connection Diagram






Specifications

Characteristic
Symbol
Rating
Unit
Peak reverse voltage
VRM
85
V
Reverse voltage
VR
80
V
Peak forward current
IFM
300
mA
Average forward current
IO
100
mA
Peak forward surge current(10ms)
IFSM
2
A
Power dissipation
PD
150
mW
Junction temperature
Tj
150
Storage temperature range
Tstg
-55 ~ 150





Description

Ultra high speed switching application
It meets the requirements of the SDS152K for low leakage current, low switching time, high variation for permitted current and small packages. more elements per package. This Diode are used in all kinds of applications e.g. Safety, Cellular phones, TV chassis, Camcorder etc.
