Features:

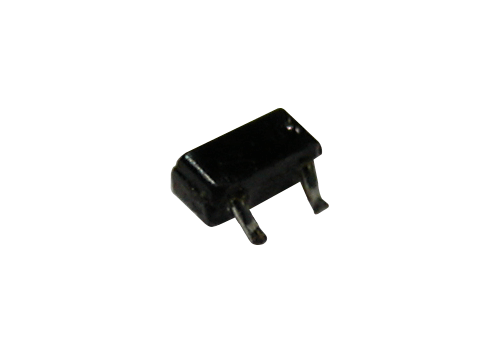

• SMD package : SOT-523F
• Low forward voltage : V_F=0.9V(Typ.)
• Fast reverse recovery time : t_rr=1.6ns(Typ.)
• Small total capacitance : CT=2.2pF(Typ.)
• Ultra high speed

Pinout

Specifications

Characteristic	Symbol	Ratings	Unit
Maximum(peak) reverse voltage	V_RM	85	V
Reverse voltage	V_R	80	V
Maximum(peak) forward current	I_FM	300	mA
Average forward current	I_O	100	mA
Surge current(10ms)	I_FSM	2	A
Power dissipation	P_D	150	mW
Junction temperature	T_j	150
Storage temperature	T_stg	-55to150

* : Unit ratings. Total rating = Unit rating *1.5

Description

Ultra high speed switching application of the SDS7000EF

It meets the requirements for low leakage current, low switching time, high variation for permitted current and small packages. more elements per package. This Diode are used in all kinds of applications e.g. Safety, Cellular phones, TV chassis, Camcorder etc.
