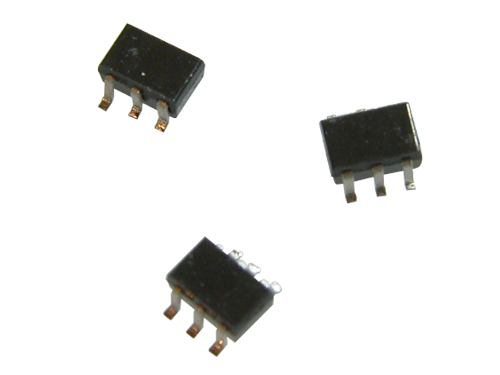

See larger image

SeekIC No. : 004487197 Detail

SDT05J: Features: • Transient protection for data lines to IEC 61000-4-2(ESD) 15KV(air), 8KV(contact )• Small package for use in portable electronics• Low operating and clamping voltage...

SDT05J Data Sheet

Get Latest Price

Part Number:: SDT05J
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SDT02S60 evaluate
Specifications Parameter Symbol Value Unit Continuous forward current, TC=100°C...
SDT05D evaluate
SDT05H evaluate
Features: • Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact ...

Product Details

Description

Features:

• Transient protection for data lines to IEC 61000-4-2(ESD) 15KV(air), 8KV(contact )
• Small package for use in portable electronics
• Low operating and clamping voltage
• Protects five I/O lines

Application

• Cellular Handsets and Accessories
• Cordless phones
• Notebooks, Handhelds and digital cameras

Pinout

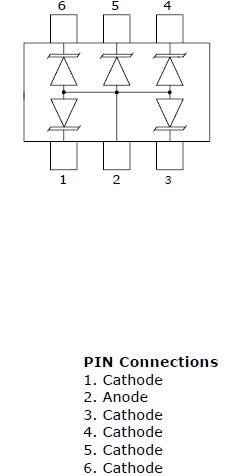

Connection Diagram

Specifications

Characteristic	Symbol	Ratings	Unit
Peak pulse power ( tp = 8/20s)	P_PK	200	W
Peak pulse current (tp = 8/20s)	I_PP	12	A
Operating temperature	T_J	-55to125
Storage temperature	T_stg	-55to150

Description

Transient protections for data lines

This production of the SDT05J offers to protect against voltage surges in a variety of inductive switching applications. It porvide the most robust protection in the smallset footprint available. Suitable replacement for multi-layer varistors in ESD protections applications
