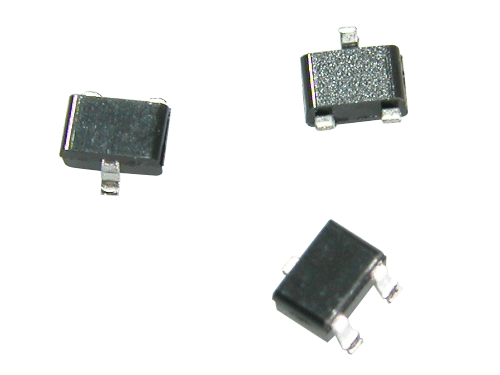

See larger image

SeekIC No. : 004487200 Detail

SDT05U: Features: • Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact )• Small package for use in portable electronics• Low operating and clamping voltageAppl...

SDT05U Data Sheet

Get Latest Price

Part Number:: SDT05U
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/5/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SDT004 evaluate
Basic / Snap Action / Limit Switches SPDT Mom-Off-Mom SMT Snap-Action SW
SDT018TFT evaluate
US $7.91 - 7.91 / Piece

TFT Displays & Accessories 1.8in TFT
SDT022TFT evaluate
TFT Displays & Accessories 2.2in TFT

Product Details

Description

Features:

• Transient protection for data lines to IEC61000-4-2(ESD) 15KV(air), 8KV(contact )
• Small package for use in portable electronics
• Low operating and clamping voltage

Application

• Cellular Handsets and Accessories
• Microprocessor based equipment
• Notebooks, Desktops and Servers

Pinout

Specifications

Characteristic	Symbol	Rating	Unit
Peak pulse power ( tp = 8/20 ㎲ )	P_PK	200	W
Peak pulse current (tp = 8/20 ㎲ )	I_PP	12	A
Lead soldering temperature	T_L	260 (10sec. )
Junction temperature	T_J	125
Storage temperature range	T_stg	-55 ~ 150

Description

Transient protections for data lines of the SDT05U

This production offers to protect against voltage surges in a variety of inductive switching applications. It porvide the most robust protection in the smallset footprint available. Suitable replacement for multi-layer varistors in ESD protections applications of the SDT05U.
