Features:

·Delivers industry leading output power:
             +19dBm, 802.11g, 54 Mbps, EVM = 2.5%
             +23dBm, 802.11b, ACPR < -32dBc
             +25dBm CW P1dB at 3.3V
·Superior harmonic performance, No band pass filter required allowing for a lower BOM
·31dB Gain
·Exceptional temperature stability
·Small plastic package, 12 pin QFN


Application

·DSSS 2.4GHz WLAN (IEEE 802.11b)
·OFDM 2.4GHz WLAN (IEEE 802.11g)
·Access Points, PCMCIA, PC cards
·2.4GHz cordless telephones


Pinout

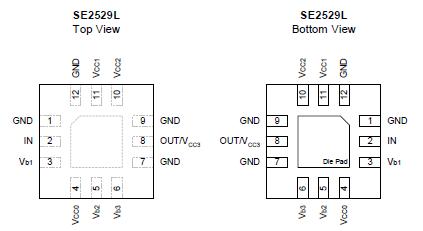

Connection Diagram


Specifications

These are stress ratings only. Exposure to stresses beyond these maximum ratings may cause permanent damage to, or affect the reliability of the device. Avoid operating the device outside the recommended operating conditions defined below. This device is ESD sensitive. Handling and assembly of this device should be at ESD protected workstations.

Symbol
Definition
Min.
Max.
Unit
VCC
 Supply Voltage on VCC0, VCC1, VCC2 and OUT/VCC3
-0.3
+3.6
V
Vbb
 Bias Voltage (Vb1, Vb2, Vb3)
-0.3
+3.6
V
IN
 RF Input Power
+8
dBm
TA
 Operating Temperature Range
-40
+85
TSTG
 Storage Temperature Range
-40
+150
Tj
 Maximum Junction Temperature
+150



Description

The SE2529L is a 2.4GHz, Silicon Germanium power amplifier designed for use in the 2.4GHz ISM band for wireless LAN and cordless telephone applications.

For wireless LAN applications, the device meets the system requirements of IEEE802.11g and delivers approximately +19dBm, at an EVM of 2.5%, while achieving an adjacent channel power of better than 26dBc @ 11MHz offset. The SE2529L meets this performance and output power while adhering to the FCC 15.209 restricted band requirements. For IEEE802.11b, the SE2529L delivers approximately +23dBm @ ACPR = -32dBc.

The SE2529L typically achieves harmonic performance of -65dBc with the recommended discrete integrated output match and low pass filter,thus not requiring an expensive and larger band pass filter.
