SE431

Features: `Low voltage operation (2.5V)`Adjustable output voltage V0 = VREF to 18V`Wide operating current range 120A to 100mA`Low dynamic output impedance 0.2 (Typ.).`Trimmed bandgap design up to + 0.5%.`ESD rating is 5.5KV(Per MIL-STD-883D).`Available in Lead Free PackagesApplication·Linear Regul...

product image

SE431 Picture
See larger image
SeekIC No. : 004487364 Detail

SE431: Features: `Low voltage operation (2.5V)`Adjustable output voltage V0 = VREF to 18V`Wide operating current range 120A to 100mA`Low dynamic output impedance 0.2 (Typ.).`Trimmed bandgap design up to + ...

SE431 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SE431
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Low voltage operation (2.5V)
`Adjustable output voltage V0 = VREF to 18V
`Wide operating current range 120A to 100mA
`Low dynamic output impedance 0.2 (Typ.).
`Trimmed bandgap design up to + 0.5%.
`ESD rating is 5.5KV(Per MIL-STD-883D).
`Available in Lead Free Packages


Application

·Linear Regulators
·Adjustable Supplies
·Switching Power Supplies
·Battery Operated Computers
·Instrumentation
·Computer Disk Drives


Pinout

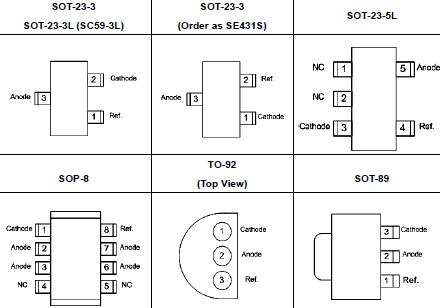

Connection Diagram


Specifications

Parameter
Symbol
Maximum
Units
Cathode Voltage
VKA
18
V
Continuous Cathode Current
IKA
150
mA
Reference Current
IREF
10
mA
Operating Junction Temperature Range
TJ
150
Storage Temperature Range
TSTG
-65to150
Thermal Resistance
JA
120 (SOT-89)
/W
230 (SOT-23-3)
230 (SOT-23-5L
150 (SOP-8)
220 (TO-92)
Lead Temperature(Soldering)10 seconds
TLEAD
260



Description

The SE431 is a low voltage three terminal adjustable shunt regulator with a guaranteed thermal stability over applicable temperature ranges. The output voltage can be set to any value between VREF (approximately 2.5 V) to 18V with two external resistors.This device has a typical output impedance of 0.2.Active output circuitry provides a very sharp turn on characteristic, making this device excellent replacement for Zener diodes in many applications.

The SE431 is characterized for operation from 0to 105, and five package options (SOT-23-3, SOT-23-5,SOP-8, TO-92 and SOT-89) allow the designer the opportunity to select the proper package for their applications.
