Part Number: SE5532
Description: The 5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational ampli...
- Table of contents:
SE5532
-
Suppliers
DataSheet
General Description
SE5532 General Description
The 5532 is a dual high-performance low noise operational amplifier. Compared to most of the standard operational amplifiers, such as the 1458, it shows better noise performance, improved output drive capability and considerably higher small-signal and power bandwidths.
This makes the device especially suitable for application in high-quality and professional audio equipment, instrumentation and control circuits, and telephone channel amplifiers. The op amp is internally compensated for gains equal to one. If very low noise is of prime importance, it is recommended that the 5532A version be used because it has guaranteed noise voltage specifications.
SE5532 Maximum Ratings
| SYMBOL | PARAMETER | RATING | UNIT |
| VS | Supply voltage | ±22 | V |
| VIN | Input voltage | ±VSUPPLY | V |
| VDIFF | Differential input voltage1 | ±0.5 | V |
| TA | Operating temperature range SA5532/A NE5532/A SE5532/A |
40 to +85 0 to 70 -55 to +125 |
°C °C °C |
| TSTG | Storage temperature | -65 to +150 | °C |
| TJ | Junction temperature | 150 | °C |
| PD | Maximum power dissipation, TA=25°C (still-air)2 8 D8 package 8 N package 8 FE package 16 D package |
780 1200 1000 1200 |
mW mW mW mW |
| TSOLD | Lead soldering temperature (10sec max) | 300 | °C |
SE5532 Features
• Small-signal bandwidth: 10MHz
• Output drive capability: 600W, 10VRMS
• Input noise voltage: 5nV /Hz (typical)
• DC voltage gain: 50000
• AC voltage gain: 2200 at 10kHz
• Power bandwidth: 140kHz
• Slew rate: 9V/s
• Large supply voltage range: ±3 to ±20V
• Compensated for unity gain
• Output drive capability: 600W, 10VRMS
• Input noise voltage: 5nV /Hz (typical)
• DC voltage gain: 50000
• AC voltage gain: 2200 at 10kHz
• Power bandwidth: 140kHz
• Slew rate: 9V/s
• Large supply voltage range: ±3 to ±20V
• Compensated for unity gain
SE5532 Connection Diagram
SE5532
PDF/DataSheet Download
- Datasheet: SE5532
- File Size: 128965 KB
- Manufacturer: PHILIPS [Philips Semiconductors]
- Click here to Download
- ·SE5018
- PHILIPS [Philips Semiconductors]
- 8-Bit mp-compatible D/A converter
- 71546 KB
- ·SE5019
- PHILIPS [Philips Semiconductors]
- 8-Bit mp-compatible D/A converter
- 71546 KB
- ·SE5019F
- PHILIPS [Philips Semiconductors]
- 8-Bit mp-compatible D/A converter
- 71546 KB
- ·SE5019N
- PHILIPS [Philips Semiconductors]
- 8-Bit mp-compatible D/A converter
- 71546 KB
- ·SE5052
- Advanced Semiconductor Inc
- TRANSISTOR | BJT | NPN | 20V V(BR)CEO | TO-72VAR
- 78864 KB
- ·SE5117FSG
- ESTEK [Estek Electronics Co. Ltd]
- Efficient linear voltage regulator
- 227162 KB
- ·SE5120
- ETC [ETC]
- 1.5A CMOS Super LDO Voltage Regulator
- 123669 KB
- ·SE5166
- ETC [ETC]
- 150mA CMOS LDO Regulator(Preliminary)
- 157117 KB
SE5532 Relative Products
SE5521
The SE5521 is a signal conditioning circuit for use with Linear Variable Differential Transformers (LVDTs) and Rotary Variable Differential Transformers (RVDTs). The chip of the SE5521 includes a low distortion, amplitude-stable sine wave oscillator with pro...
SE5514
The SE5514 family of quad operational amplifiers sets new tandards in bipolar quad amplifier performance. The amplifiers eature low input bias current and low offset voltages. Pinout is dentical to SE5514 which facilitates direct product ubstitution for impr...
SE5512
The SE5512 series of high-performance operational amplifiers provides very good input characteristics. These amplifiers of the SE5512feature low input bias and voltage characteristics such as a 108 op amp with improved CMRR and a high differential input volt...

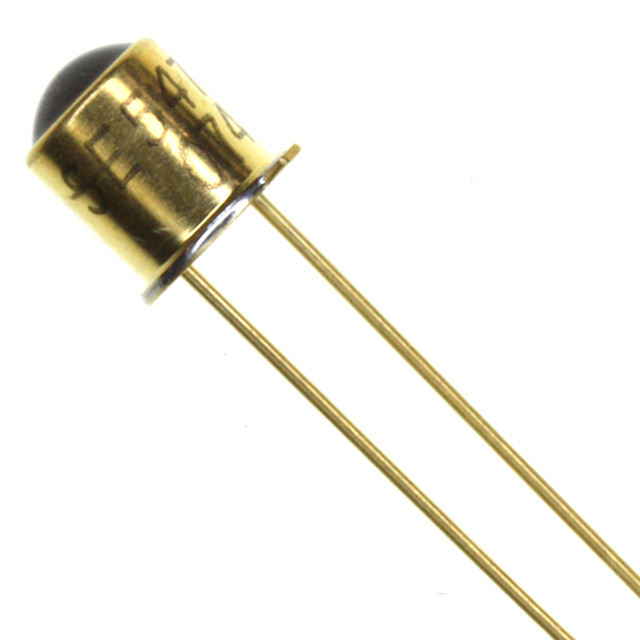

SE5470-004
DIODE IR EMITTING ALGAAS TO-46
SE5470-003
DIODE IR EMITTING ALGAAS TO-46

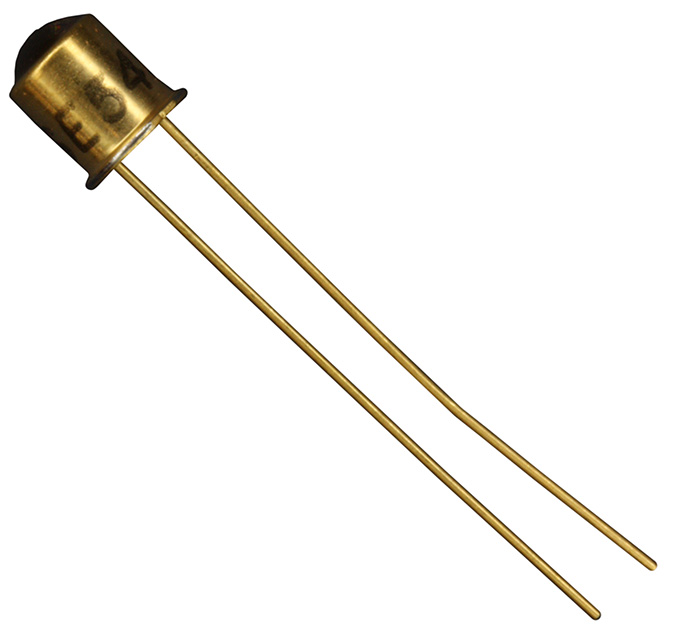

SE5455-004
