SED1278

Features: • Low-power CMOS technology• 40 segment output• 16 common output• Duty: 1/8 or 1/16 (set by command)• 4/8-bit CPU data interface, TTL compatible• Two frame AC drive wave form• CGROM: .................................... 240 characters• CGRA...

product image

SED1278 Picture
See larger image
SeekIC No. : 004487443 Detail

SED1278: Features: • Low-power CMOS technology• 40 segment output• 16 common output• Duty: 1/8 or 1/16 (set by command)• 4/8-bit CPU data interface, TTL compatible• Two fr...

SED1278 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SED1278
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-power CMOS technology
• 40 segment output
• 16 common output
• Duty: 1/8 or 1/16 (set by command)
• 4/8-bit CPU data interface, TTL compatible
• Two frame AC drive wave form
• CGROM: .................................... 240 characters
• CGRAM: ........................................ 8 characters
• Display data RAM: ... 80 ×8 bits (80 characters)
• Recommended expansion segment driver:
   SED1181FLA (64 output)
   SED1681F (80 output)
• Built-in power on power-on reset
• Built-in RC oscillator
• Built-in LCD driver voltage-divider network
• TTL compatible CPU interface
• Supply voltage ................... Logic: 4.5V to 5.5V
                                                 LCD: 3.5V to 5.5V
• Package:
      QFP5-80 pins (F0A, F0B, F0C, F0D, F0G, F0H)
              Al pad (D0A, D0B, D0C, D0D, D0G, D0H)


Pinout

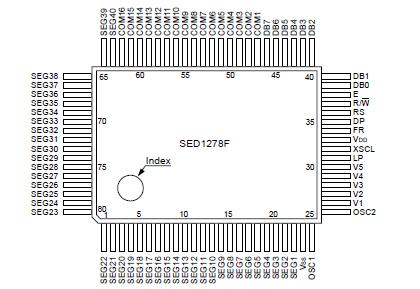

Connection Diagram


Specifications

Parameter
Symbol
Ratings
Unit
Supply voltage (1)
VDD
-0.3to7.0
V
Supply voltage (2)
V1toV5
0.3 to VDD+0.3
V
Input voltage
VI
0.3 to VDD+0.3
V
Output voltage
VO
0.3 to VDD+0.3
V
power dissipation
PD
300
mW
Operating temperature
Topr
20 to +75
Storage temperature
Tstg
65 to +150
Soldering temperature and time
Tsol
260°C, 10 s (at lead)
-
Note: The following condition must always hold true: VDD V1 V2 V3 V4 V5


Description

The SED1278 is a character LCD controller-driver, capable of driving displays as large as 2 lines of 8 characters (5 × 8 pixels), with minimum external components.

The SED1278 has an internal CGROM consisting of 240 characters (5×7) plus the underline cursor, JIS,ASCII, and eight user-programmable characters in RAM.

The SED1278 has 40 segment output and 16 common output built-in. Thus, one chip is capable of displaying up to 16 characters. The SED1278 can display one line of 48 characters using an SED1681F (80-bit output) as an expansion segment driver.

The SED1278 is fabricated using a silicon gate CMOS technology process and features very low power dissipation. This makes the device suitable for handheld and portable applications.
