SED1278F

Features: `Display RAM .............................. 80 bytes (80 characters)`Character generator ROM .......... 240 characters (Able to 256 characters)`Character generator RAM .......... 8 characters`Built-in CR oscillator, Built-in power-on reset circuit`Maximim display dimension ....... 40 cha...

product image

SED1278F Picture
See larger image
SeekIC No. : 004487445 Detail

SED1278F: Features: `Display RAM .............................. 80 bytes (80 characters)`Character generator ROM .......... 240 characters (Able to 256 characters)`Character generator RAM .......... 8 charact...

SED1278F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SED1278F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Display RAM .............................. 80 bytes (80 characters)
`Character generator ROM .......... 240 characters (Able to 256 characters)
`Character generator RAM .......... 8 characters
`Built-in CR oscillator, Built-in power-on reset circuit
`Maximim display dimension ....... 40 characters52 lines, 80 characters51 line (When accompanied with SED1181FLA/DLA, SED1681FOA/DOA)
`1/8, 1/11 or 1/16 duty matirx drive (fixed by command)
`2 flame AC wave-form drive
`High-speed bus interface with 4-bit/8-bit MPU
`Powerful display control instructions
`Character ................................... 557 dots+Cursor line (558 dots also possible) 5510 dots+Cursor line
`6 Kinds of character font
`Single power supply ................... 5V±10% (Logic)
`Low LCD driving voltage ............ VDD-V50V
`Package ..................................... SED1278F: QFP5-80pin (plastic) SED1278D: Die form (Al pad)


Pinout

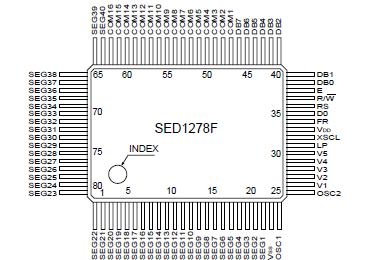

Connection Diagram


Specifications

Rating Symbol Value Unit
Supply voltage (1) VDD 0.3 to 7.0 V
Supply voltage (2) V1 to V5 0.3 to VDD+0.3 V
Input voltage VI 0.3 to VDD+0.3 V
Output voltage VO 0.3 to VDD+0.3 V
Power dissipation PD 300 mW
Operating temperature Topr 20 to 75 °C
Storage temperature Tstg 65 to 150 °C
Soldering temperature and time Tsol 260°C•10s (at lead) -
Note: The following condition must always hold true: VDDV1V2V3V4V5


Description

The SED1278F/D is a dot matrix LCD controller/driver which is dedicated to character display. It is capable of displaying up to 80 characters under 4-bit/8-bit MPU control.

The built-in character generator ROM has an extended capacity of 240 different characters, each being generated in a 5×10 dots font compatible with a 1/11 duty. In addition, the SED1278F/D contains 64 bytes of character generator RAM in which the user can store 8 different characters, each consisting of 558 dots. These memory features offer high flexibility in character display.

The guaranteed minimum LCD driving voltage is 3V, and this makes the SED1278F/D suitable for driving low voltage LCDs.
