SED1330

• CMOS low-power graphic and character display controller
• Selectable MPU interface is compatible with both the Intel family and the Motorola family
• Smooth scrolling support:
                              Horizontal and vertical scroll
                              Scrolling of selected areas of the display
• Multimode display:
                              2 layers of overlapping character and graphics
                              3 layers of overlapping graphics
• Selectable display synthesis:
                               Inverse video
                               Flashing display, cursor on/off/blink
                               Under and bar cursor, block cursor
                               Simple animation
• Programmable cursor
• Internal character generator ROM
• Supports external character generator ROM:
                                8 * 8 or 8 * 16 pixel characters Allows mixing of ROM and RAM character sets
• Supports 64K bytes of memory:
                               2 of 32K * 8 100ns SRAM or 8 of 8K *8 100ns SRAM
• Display duty .................................. 1/2 to 1/256
• Low power dissipation ................ 5mA (typical)
                                                      0.05A (typical), standby
• Logic power supply ........................ 4.5 to 5.5V

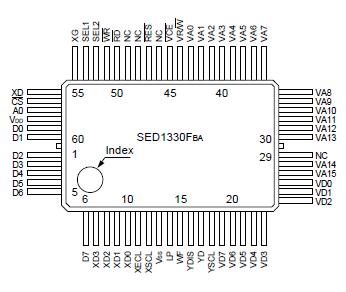

• Package ................ Plastic QFP5-60 pin (FBA)
                                   Plastic QFP6-60 pin (FBB)

The SED1330 is a CMOS low-power dot matrix liquid crystal graphic display controller. The device stores in external RAM display data sent by an 8-bit microcomputer, and generates all the signals required by the LCD drivers. The LSI incorporates an internal character generator ROM which supports user-defined characters (also an external CGROM can be supported).

The SED1330 can be interfaced to high-speed microprocessors such as the Intel family or Motorola family.The controller supports a set of rich commands that will allow the user to create a layered display of characters and graphics.

Also, the controller functions as a pipeline buffer between the MPU and display memory so that low-cost,medium-speed SRAM can be used.
