Features: · Direct RAM data display using the display RAM. When RAM data bit is 0, it is not displayed. When RAM data bit is 1, it is displayed. (At normal display)
·RAM capacity: 65 ×132 = 8580 bits
·High-speed 8-bit microprocessor interface allowing direct connection to both the 8080 and 6800.
· Many command functions: Read/Write Display Data, Display ON/OFF, Normal/Reverse Display, Page Address Set, Set Display Start Line, Set Column Address, Read Status, All Display ON/OFF, Set LCD Bias,Electronic contrast Controls, Read Modify Write, Select Segment Driver Direction, Power Save

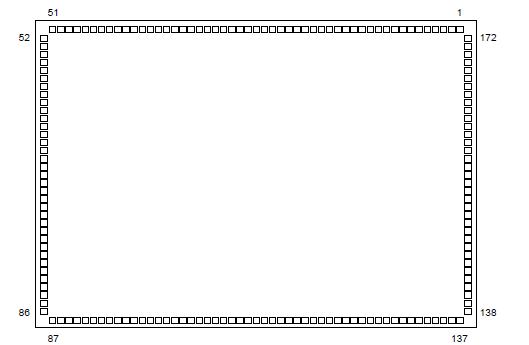

Pinout
Specifications
|
Rating |
Symbol |
Value |
Unit |
| Supply voltage range |
|
VDD |
0.3 to +7.0 |
V |
| Triple boosting |
0.3 to +6.0 |
| Quadruple boosting |
0.3 to +4.5 |
| Supply voltage range (1) (VDD Level) |
VS,VOUT |
18.0 to +0.3 |
V |
| Supply voltage range (2) (VDD Level) |
V1,V2,V3,V4 |
V5 to +0.3 |
V |
| Input voltage range |
VIN |
0.3 to VDD+0.3 |
V |
| Output voltage range |
V0 |
0.3 to VDD+0.3 |
V |
| Operating temperature range |
TOPR |
40 to +85 |
|
| Storage temperature range |
TCP |
TSTR |
55 to +100 |
|
| Bear chip |
55 to +125 |
DescriptionThe SED1530 series is a single-chip LCD driver for dot-matrix liquid crystal displays (LCD's) which is directly connectable to a microcomputer bus. It accepts 8-bit serial or parallel display data directly sent from a microcomputer and stores it in an on-chip display RAM. It generates an LCD drive signal independent of microprocessor clock.
The use of the on-chip display RAM of 65 * 132 bits and a one-to-one correspondence between LCD panel pixel dots and on-chip RAM bits permits implementation of displays with a high degree of freedom.As a total of 133 circuits of common and segment outputs are incorporated, a single chip of SED1530 series can make 33 *100-dot (16 *16-dot kanji font: 6 columns *2 lines) displays, and a single chip of SED1531 can make 65 *132-dot (kanji font: 8 columns x 4 lines) displays when the SED1531 is combined with the common driver SED1635.
The SED1532 can display the 65x200-dot (or 12-column by 4-line Kanji font) area using two ICs in master and slave modes. As an independent static indicator display is provided for time-division driving, the low-power display is realized during system standby and others.No external operation clock is required for RAM read/write operations. Accordingly, this driver can be operated with a minimum current consumption and its on-board low-current-consumption liquid crystal power supply can implement a high-performance handy display system with a minimum current consumption and a smallest LSI configuration.
Two types of SED1530 series are available: one in which common outputs are arranged on a single side and the other in which common outputs are arranged on both sides.
SED1530 Data Sheet
