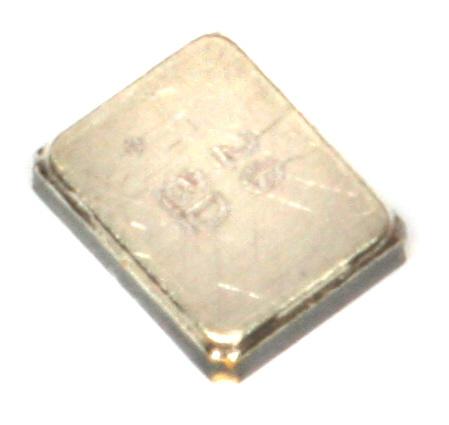

SF1186H-2

Frequency Range :
Voltage Rating :
Bandwidth :
Package / Case :
Impedance : 50 Ohms
Termination Style : SMD/SMT
Operating Temperature Range : - 40 C to + 85 C
Packaging : Reel
Product : SAW Filters
Frequency : 1575 MHz


Specifications

Characteristic Symbol Minimum Typical Maximum Units Center Frequency fC 1575.42 MHz Max. Insertion Loss (1574.42 - 1576.42 MHz) IL 1.15 1.6 dB Amplitude Ripple (1574.42 - 1576.42 MHz) 0.1 0.5 dB VSWR (1574.42 - 1576.42 MHz) 1.2 1.9 Attenuation 100~960 MHz 31 33 dB 960~1460 MHz 31 33 dB 1460~1513 MHz 22 26 dB 1648~1710 MHz 22 28 dB 1710~1990 MHz 25 32 dB 1990~2300 MHz 25 30 dB 2300~4000 MHz 29 31 dB 4000~6000 MHz 20 24 dB Terminating Source impedance ZS 50 W Terminating Load impedance ZL 50 W


Description

SF1186H-2 RF Filter Designed for Front End GPS Applications Low Insertion Loss Improved Rejection 2.0 x 1.6 mm Surface-Mount Case Complies with Directive 2002/95/EC (RoHS)
