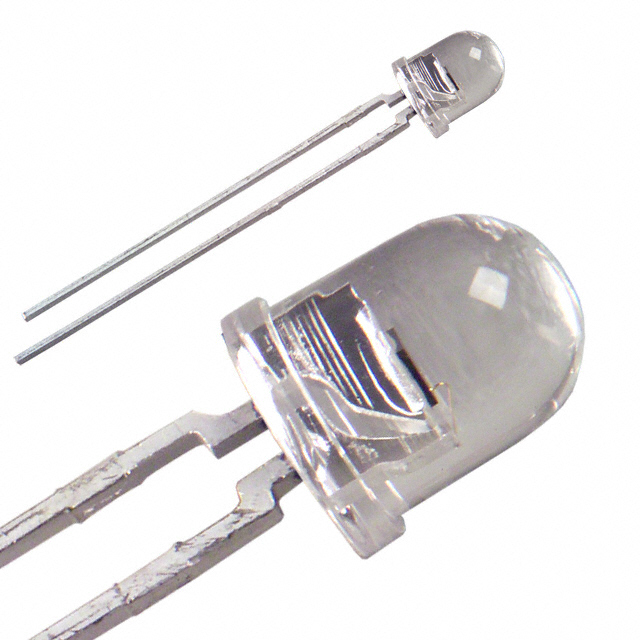

SFH229

Series: -
Color - Enhanced: -
Diode Type: PIN
Operating Temperature: -40°C ~ 100°C
Package / Case: Radial
Response Time: 10ns
Manufacturer: OSRAM Opto Semiconductors Inc
Voltage - DC Reverse (Vr) (Max): 20V
Current - Dark (Typ): 50pA
Active Area: 0.56mm x 0.56mm (0.3mm²)
Viewing Angle: 34°
Wavelength: 860nm
Spectral Range: 380nm ~ 1100nm
Responsivity @ nm: 0.62 A/W @ 850nm


Features:

· Especially suitable for applications from 380 nm to 1100 nm (SFH 229) and of 880 nm (SFH 229 FA)
· Short switching time (typ. 10 ns)
· 3 mm LED plastic package
· Also available on tape


Application

· Photointerrupters
· Industrial electronics
· For control and drive circuits


Specifications

Bezeichnung Description	Symbol Symbol	Wert Value	Einheit Unit
Betriebs- und Lagertemperatur Operating and storage temperature range	Top; Tstg	55 ... + 100	°C
Löttemperatur (Lötstelle 2 mm vom Gehäuse entfernt bei Lötzeit t 3 s) Soldering temperature in 2 mm distance from case bottom (t 3 s)	TS	230	°C
Sperrspannung Reverse voltage	VR	20	V
Verlustleistung Total power dissipation	Ptot	150	mW

Parameters:

Technical/Catalog Information	SFH229
Vendor	Osram
Category	Sensors, Sensor Evaluation Kits
Mounting Type	Through Hole
Package Name	Radial T-1 (3mm)
Viewing Angle	34° [Typ]
Wavelength	860 nm [Typ]
Short Circuit Current	27.00 A [Typ]
Dark Current	50.0 pA [Typ]
Operating Temperature	-40 °C [Min]
Operating Temperature	100 °C [Max]
Fall Time	10.000 ns [Typ]
Rise Time	10.00 ns [Typ]
Active Area	0.3000 mm2 [Nom]
Active Area Width	0.56 mm x 0.56 mm
Diameter	3.8000 mm [Nom]
Forward Voltage (Vf)	1.300 VDC [Typ]
Height	4.900 mm [Nom]
Housing Material	Plastic
Junction Capacitance	13 pF [Nom]
Lead Length	28.000 mm [Nom]
Lead Spacing	2.540 mm [Nom]
On Current	28.00 A [Nom]
Packaging	Bulk
Power Dissipation	150.000 mW [Max]
Reverse Voltage	20.0 V [Max]
Termination Style	PC Pin
Type	PIN Photo Diode
Other Names	SFH229 SFH229 475 1078 ND 4751078ND 475-1078
