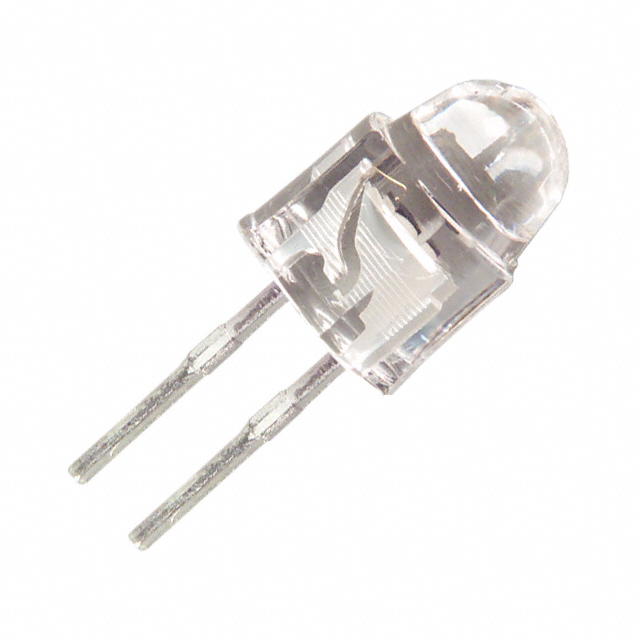

SFH3505

Series: *
Current - Collector (Ic) (Max): 50mA
Current - Dark (Id) (Max): 200nA
Mounting Type: Surface Mount
Power - Max: 150mW
Orientation: Side View
Package / Case: Radial
Manufacturer: OSRAM Opto Semiconductors Inc
Viewing Angle: 26°
Voltage - Collector Emitter Breakdown (Max): 35V
Wavelength: 830nm


Features:

·  Especially suitable for applications from450 nm to
   1060 nm (SFH 3500/3505) and of
   880 nm (SFH 3500 FA/3505 FA)
·  High sensitivity
·  For mounting on pcb (SFH 3500/FA) or in pcb (SFH 3505/FA)
· Matches IRED SFH 451x, SFH 458x
· Suitable for surface mounting (SMT)
· Available on tape and reel

Application

· A variety of manufacturing and monitoring
  applications
· For control and drive circuits
· Photointerrupters

Specifications

Bezeichnung Description	Symbol Symbol	Wert Value	Einheit Unit
Betriebs- und Lagertemperatur Operating and storage temperature range	Top; Tstg	40 ... + 85	°C
Kollektor-Emitterspannung Collector-emitter voltage	VCE	35	V
Kollektorstrom Collector current	IC	50	mA
Kollektorspitzenstrom, t =10 s Collector surge current	ICS	100	mA
Emitter-Kollektorspannung Emitter-collector voltage	VEC	7	V
Verlustleistung, TA = 25 °C Total power dissipation	Ptot	150	mW
Wärmewiderstand Thermal resistance	RthJA	400	K/W
