SFH4500

EMITTER IR 950NM 5MM RADIAL

product image

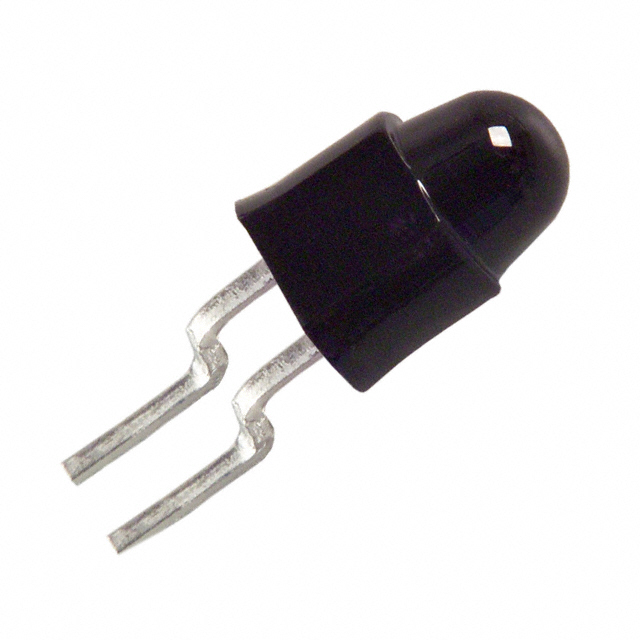

SFH4500 Picture
See larger image
SeekIC No. : 003612007 Detail

SFH4500: EMITTER IR 950NM 5MM RADIAL

SFH4500 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SFH4500
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: OSRAM Opto Semiconductors Inc
Current - DC Forward (If): 100mA Radiant Intensity (Ie) Min @ If: 40mW/sr @ 100mA
Wavelength: 950nm Voltage - Forward (Vf) Typ: 1.5V
Viewing Angle: 20° Orientation: Side View
Mounting Type: Through Hole Package / Case: Radial - 2 Lead, Formed
Package / Case : SOT-109

Description

Series: -
Current - DC Forward (If): 100mA
Wavelength: 950nm
Radiant Intensity (Ie) Min @ If: 40mW/sr @ 100mA
Viewing Angle: 20°
Voltage - Forward (Vf) Typ: 1.5V
Mounting Type: Through Hole
Orientation: Side View
Manufacturer: OSRAM Opto Semiconductors Inc
Packaging: Cut Tape (CT)
Package / Case: Radial - 2 Lead, Formed


Features:

• High pulse power and high radiant flux Fe
• SMR® (Surface Mount Radial) package
• Very short switching times (10 ns)
• Very high long-time stability
• High reliability


Application

• Device with high radiant intensity suitable for surface mounting (SMT)
• High data transmission rate up to 100 Mbaud (IR keyboard, Joystick, Multimedia)
• Analog and digital Hi-Fi audio and video signal transmission
• Low power consumption (battery) equipment
• Suitable for professional and high-reliability applications
• Alarm and safety equipment
• IR free air transmission


Specifications

Bezeichnung
Parameter
Symbol
Symbol
Wert
Value
Einheit
Unit
Betriebs- und Lagertemperatur
Operating and storage temperature range
Top; Tstg
40 ¼ + 100
°C
Sperrspannung
Reverse voltage
VR
3
V
Durchlaßstrom
Forward current
IF (DC)
100
mA
Stoßstrom, tp = 10 ms, D = 0
Surge current
IFSM
1
A
Verlustleistung
Power dissipation
Ptot
180
mW
Wärmewiderstand Sperrschicht - Umgebung,
freie Beinchenlänge max. 10 mm
Thermal resistance junction - ambient,
lead length between package bottom and PCB
max. 10 mm
RthJA
375
K/W



Parameters:

Technical/Catalog InformationSFH4500
VendorOSRAM Opto Semiconductors Inc (VA)
CategoryOptoelectronics
Voltage - Forward (Vf) Typ1.5V
Current - DC Forward (If)100mA
Wavelength950nm
Viewing Angle20°
Radiant Intensity (Ie) Min @ If40mW @ 100mA
Mounting TypeThrough Hole
Package / CaseSMR?
OrientationSide View
PackagingCut Tape (CT)
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names SFH4500
SFH4500
475 1101 1 ND
47511011ND
475-1101-1
