Part Number: SG120-15L
Description: The SG120 series of negative regulators offer self-contained, fixed-voltage capability with up to 1.5A of load current....
- Table of contents:
SG120-15L
-
Suppliers
DataSheet
General Description
SG120-15L General Description
The SG120 series of negative regulators offer self-contained, fixed-voltage capability with up to 1.5A of load current. With a variety of output voltages and four package options this regulator series is an optimum complement to the SG7800A/ 7800/120 line of three terminal regulators. <BR><BR>All protective features of thermal shutdown, current limiting, and safe-area control have been designed into these units and since these regulators require only a single output capacitor or a capacitor and 5mA minimum load for satisfactory performance, ease of application is assured. Although designed as fixed-voltage regulators, the output voltage can be increased through the use of a simple voltage divider. <BR><BR>The low quiescent drain current of the device insures good regulation when this method is used, especially for the SG120 series. Utilizing an improved Bandgap reference design, problems have been eliminated that are normally associated with the zener diode references, such as drift in output voltage and large changes in the line and load regulation These devices are available in TO-257 (hermetically sealed TO-220), both isolated and non-isolated), TO-3, TO-39 and TO-66 power packages.
SG120-15L Maximum Ratings
| Device Output Voltage |
Input Voltage | Input Voltage Differential (Output shorted to ground) |
| -5V -5.2V -8V -12V -15V -18V -20V |
-35V -35V -35V -35V -40V -40V -40V |
35V 35V 35V 35V 35V 35V 35V |
Operating Junction Temperature
Hermetic (K, R, IG - Packages) ...................................-65°C to 150°C
Storage Temperature Range .....................................................300°C
Lead Temperature (Soldering, 10 Seconds) ..............................150°C
SG120-15L Features
• Output current to 1.5A
• Excellent line and load regulation
• Foldback current limiting
• Thermal overload protection
• Voltages available: -5V, -12V, -15V
• Voltages Not Recommended For NewDesigns: -5.2V, -8V, -18V, -20V
• Contact factory for other voltage options
• Excellent line and load regulation
• Foldback current limiting
• Thermal overload protection
• Voltages available: -5V, -12V, -15V
• Voltages Not Recommended For NewDesigns: -5.2V, -8V, -18V, -20V
• Contact factory for other voltage options
SG120-15L
PDF/DataSheet Download
- Datasheet: SG120-15L
- File Size: 179081 KB
- Manufacturer: MICROSEMI [Microsemi Corporation]
- Click here to Download
- ·SG1000GXH26
- Toshiba
- INVERTER APPLICATION
- 211366 KB
- ·SG105
- KODENSHI [KODENSHI KOREA CORP.]
- PHOTOINTERRUPTERS
- 86479 KB
- ·SG105F
- KODENSHI [KODENSHI KOREA CORP.]
- PHOTOINTERRUPTERS
- 90931 KB
- ·SG107F3
- ETC [ETC]
- Reflective sensor combines a GaAs IRED with a high-sensitivity phototransistor
- 132508 KB
- ·SG109
- MICROSEMI [Microsemi Corporation]
- 5 -VOLT FIXED VOLTAGE REGULATORS
- 51727 KB
- ·SG109IG
- MICROSEMI [Microsemi Corporation]
- 5 -VOLT FIXED VOLTAGE REGULATORS
- 51727 KB
- ·SG109IG/883B
- MICROSEMI [Microsemi Corporation]
- 5 -VOLT FIXED VOLTAGE REGULATORS
- 51727 KB
- ·SG109K
- MICROSEMI [Microsemi Corporation]
- 5 -VOLT FIXED VOLTAGE REGULATORS
- 51727 KB
SG120-15L Relative Products
SG1200EXH24
Features of the SG1200EXH24 are:(1)repetitive peak off-state voltage:VDRM=2500V;(2)R.M.S. on-state current:IT(RMS)=500A;(3)peak turn-off current:ITGQM=1200A;(4)critical rate of rise of on-state current:di/dt=250A/s;(5)critical rate of rise of off-state volta...
SG120
The SG120 series of negative regulators offer self-contained, fixed-voltage capability with up to 1.5A of load current. With a variety of output voltages and four package options this regulator series is an optimum complement to the SG7800A/ 7800/SG120 line ...

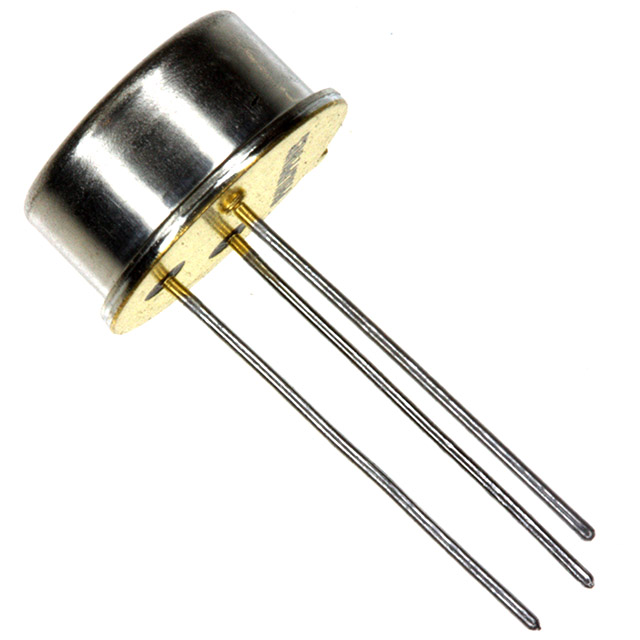

SG117T
