SG2842M suppliers, SG2842M price trend, SG2842M PDF download, circuit diagram from SeekIC

Purchase SG2842M, In-stock SG2842M From SeekIC.

MFG:Microsemi-IPG Category:Integrated Circuits (ICs)

Five Points

Category: Integrated Circuits (ICs)

MFG: Microsemi-IPG

Descriptions: IC PWM CURRENT MODE 8DIP

Price Break

1
25
100
500
1000
5000
10000

Unit Price

6.60000
5.94000
4.95000
4.12500
3.30000
2.31000
2.14500

Extended Price

6.60
148.50
495.00
2062.50
3300.00
11550.00
21450.00

(All prices are in USD) Prices for reference only

IC PWM CURRENT MODE 8DIP

Technical/Catalog Information	SG2842M
Vendor	Microsemi-IPG
Category	Integrated Circuits (ICs)
PWM Type	Current Mode
Number of Outputs	1
Package / Case	8-DIP
Packaging	Tube
Duty Cycle	100%
Voltage - Supply	12 V ~ 30 V
Frequency-Max	500kHz
Buck	No
Boost	No
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	Yes
Drawing Number	*
Operating Temperature	-25°C ~ 85°C
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SG2842M SG2842M

SG2842M
PDF/DataSheet Download

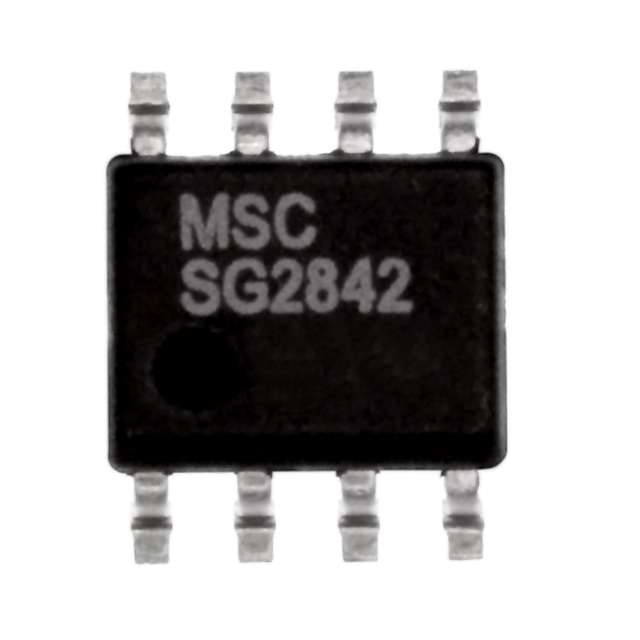

SG2842DM
