SG3842M suppliers, SG3842M price trend, SG3842M PDF download, circuit diagram from SeekIC

Purchase SG3842M, In-stock SG3842M From SeekIC.

MFG:Microsemi-IPG Category:Integrated Circuits (ICs)

Five Points

Category: Integrated Circuits (ICs)

MFG: Microsemi-IPG

Descriptions: IC PWM CURRENT MODE 8DIP

Price Break

1
25
100
500
1000
5000
10000

Unit Price

2.40000
2.16000
1.80000
1.50000
1.20000
.84000
.78000

Extended Price

2.40
54.00
180.00
750.00
1200.00
4200.00
7800.00

(All prices are in USD) Prices for reference only

IC PWM CURRENT MODE 8DIP

Technical/Catalog Information	SG3842M
Vendor	Microsemi-IPG
Category	Integrated Circuits (ICs)
PWM Type	Current Mode
Number of Outputs	1
Package / Case	8-DIP
Packaging	Tube
Duty Cycle	100% Max
Voltage - Supply	30V
Frequency-Max	500kHz
Buck	No
Boost	No
Flyback	Yes
Inverting	No
Doubler	No
Divider	No
Cuk	No
Isolated	No
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SG3842M SG3842M

SG3842M
PDF/DataSheet Download

SG3842G
The SG3842G series of current-mode PWM controllers combines high performance with Green-mode power saving features. SG3842G controllers are fully pin-to-pin compatible with bipolar UC384x devices, but they have improved features and functionality. SG3842G se...

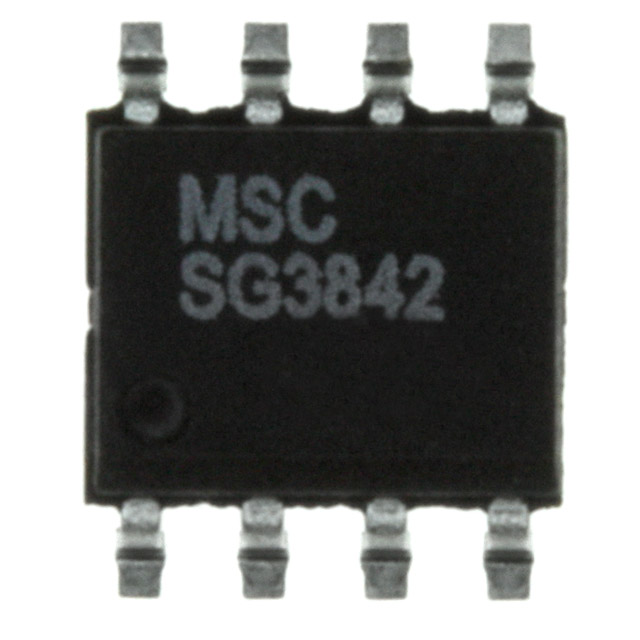

SG3842DM
