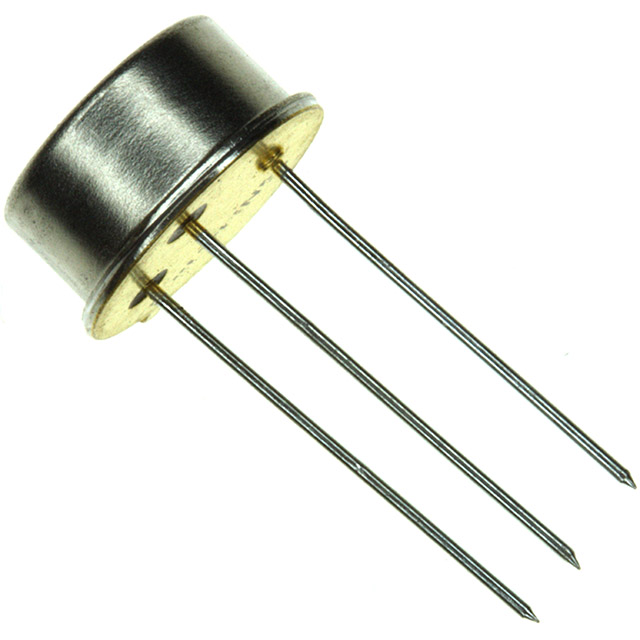

Features: · Output voltage set internally to ±1.5% on SG7800A· Input voltage range to 50V max. on SG7800A· Two volt input-output differential· Excellent line and load regulation· Foldback current limiting· Thermal overload protection· Voltages available: 5V, 12V, 15V· Available in surface mount pa...
SG78XXAIG: Features: · Output voltage set internally to ±1.5% on SG7800A· Input voltage range to 50V max. on SG7800A· Two volt input-output differential· Excellent line and load regulation· Foldback current li...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Device Output Voltage |
Input Voltage | Input Voltage (transient) (Note 3) |
Input Voltage Differential (Outputshortedtoground) |
5V 12V 15V |
35V 35V 35V |
50V 50V 50V |
35V 35V 35V |
The SG7800A/SG7800/SG78XXAIG series of positive regulators offer self contained, fixed-voltage capability with up to 1.5A of load current and input voltage up to 50V (SG7800A series only). These units feature a unique on-chip trimming system to set the output voltages to within ±1.5% of nominal on the SG7800A series, ±2.0% on the SG7800 series. The SG78XXAIG versions also offer much improved line and load regulation characteristics. Utilizing an improved Bandgap reference design, problems have been eliminated that are normally associated with the Zener diode references, such as drift in output voltage and large changes in the line and load regulation.
All protective features of thermal shutdown, SG78XXAIG, current limiting, and safe-area control have been designed into these units and since these regulatorsrequire only a small output capacitor for satisfactory performance, ease of application is assured.
