SGM84782

V+ to GND.......................................................................0V to +4.6V
Analog, Digital voltage range(1)...................... - 0.3V to( V+ + 0.3V)
Continuous Current NO, NC, or COM ................................±250mA
Peak Current NO, NC, or COM ...........................................±400mA
Operating Temperature Range..................................- 40°C to +85°C
Junction Temperature.............................................................+150°C
Storage Temperature................................................- 65°C to +150°C
Lead Temperature (soldering, 10s)..........................................+260°C
ESD Susceptibility
HBM..........................................................................................4000V
MM..............................................................................................400V

Stresses beyond those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

The SGM84782 is high-speed, low-voltage, low on-resistance, CMOS analog multiplexer/switch that configured as two 4-channel multiplexers. It operates from a single +1.8V to +4.2V power supply. Targeted applications include battery powered equipment that benefit from low RON (4) and fast switching speeds (tON = 17 ns, tOFF = 9 ns).

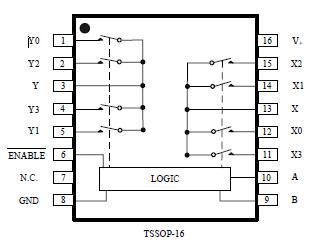

The SGM84782 can handle rail-to-rail analog signals and is available in TQFN-16 and TSSOP-16 packages.
