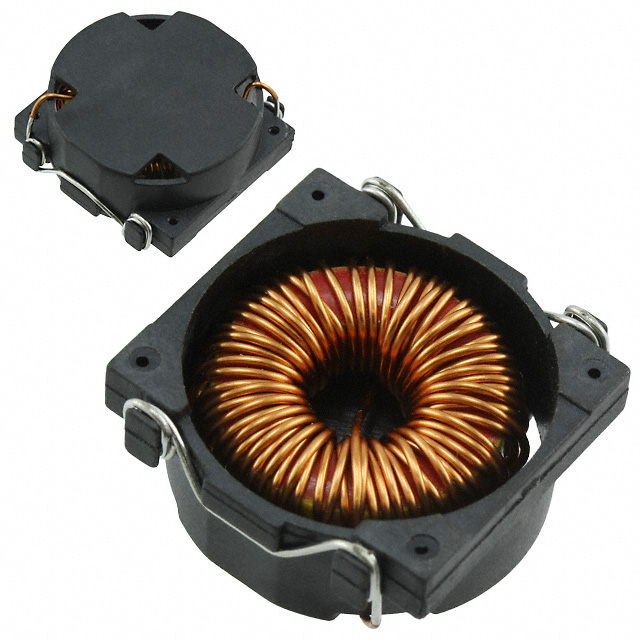

SH150S-2.70-77: INDUCTOR 77UH 2.70A 150KHZ SMD

SH150S-2.70-77 Data Sheet

US $ 1.84~2.98 / Piece | Get Latest Price

Part Number:: SH150S-2.70-77
Mfg:
Supply Ability:: 5000

Price Break

Qty
0~1
1~10
10~25
25~50
50~100

Unit Price
$2.98
$2.83
$2.69
$2.3
$1.84

Processing time
15 Days
15 Days
15 Days
15 Days
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SH150C-1.5-250 evaluate
US $1.18 - 1.18 / Piece

INDUCTOR 250UH 1.50A 150KHZ CLP
SH150C-1.81-168 evaluate
US $1.23 - 1.23 / Piece

INDUCTOR 168UH 1.81A 150KHZ CLP
SH150C-2.22-114 evaluate
US $.89 - 2.33 / Piece

INDUCTOR 114UH 2.22A 150KHZ CLP

Product Details

Quick Details

Series:	SH150	Manufacturer:	AlfaMag Electronics, LLC
Inductance:	77µH	Current:	2.7A
Common Mode Rejection Ratio (Min) :	58 dB	Current - Saturation:	-
Current - Temperature Rise:	-	Type:	Toroidal
Tolerance:	±20%	Shielding:	Unshielded
DC Resistance (DCR):	90 mOhm	Q @ Freq:	-
Frequency - Self Resonant:	-	Material - Core:	-
Package / Case:	0.957" L x 0.925" W x 0.417" H (24.30mm x 23.50mm x 10.60mm)	Mounting Type:	Surface Mount

Description

Current - Saturation: -
Current - Temperature Rise: -
Shielding: Unshielded
Material - Core: -
Mounting Type: Surface Mount
Q @ Freq: -
Tolerance: ±20%
Frequency - Self Resonant: -
DC Resistance (DCR): 90 mOhm
Packaging: Cut Tape (CT)
Current: 2.7A
Type: Toroidal
Inductance: 77µH
Series: SH150
Manufacturer: AlfaMag Electronics, LLC
Package / Case: 0.957" L x 0.925" W x 0.417" H (24.30mm x 23.50mm x 10.60mm)

Parameters:

Technical/Catalog Information	SH150S-2.70-77
Vendor	Alfamag Electronics LLC (VA)
Category	Inductors, Coils, Chokes
Inductance	77H
Tolerance	±20%
Package / Case	0.957" L x 0.925" W x 0.417" H (24.30mm x 23.50mm x 10.60mm)
Packaging	Digi-Reel?
Type	Toroidal
Current	2.7A
Mounting Type	Surface Mount
Q @ Freq	-
Self Resonant Freq	-
DC Resistance (DCR)	90.00 mOhm Max
Shielding	-
Applications	General Purpose
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SH150S 2 70 77 SH150S27077 TE2191DKR ND TE2191DKRND TE2191DKR
