SJ-43502PM

CONN JACK AUDIO 3.5MM 4COND

product image

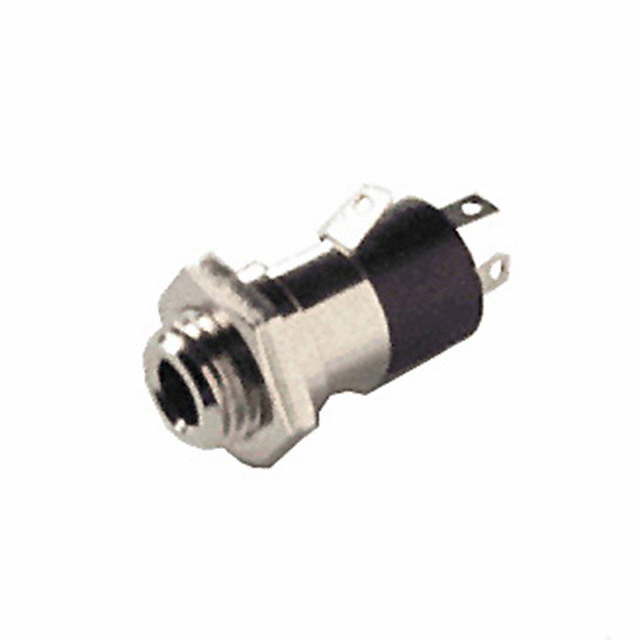

SJ-43502PM Picture
See larger image
SeekIC No. : 003016655 Detail

SJ-43502PM: CONN JACK AUDIO 3.5MM 4COND

SJ-43502PM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SJ-43502PM
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Phone Jack Gender: Female
Signal Lines: Multiple Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Recovery Time : 20 ns Number of Positions/Contacts: 4 Conductors, 4 Contacts
Internal Switch(s): Does Not Contain Switch Mounting Type: Panel Mount
Termination: Solder Eyelet(s) Shielding: Unshielded
Features: -

Description

Series: -
Manufacturer: CUI Inc
Connector Type: Phone Jack
Gender: Female
Shielding: Unshielded
Features: -
Signal Lines: Multiple
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Color - Contact: Silver
Internal Switch(s): Does Not Contain Switch
Number of Positions/Contacts: 4 Conductors, 4 Contacts
Termination: Solder Eyelet(s)
Mounting Type: Panel Mount


Specifications

  • rating: 34 Vdc/AC@1000mA
  • contact resistance: 50mΩ MAX
  • insulation resistance: 100mΩ or greater at 500 Vdc
  • voltage withstand: 500V AC RMS, 1 minute
  • flammability: UL94V-0 rated
  • life: 5,000 cycles
  • # of connections: 4



    • Parameters:

    Technical/Catalog InformationSJ-43502PM
    VendorCUI Inc
    CategoryConnectors
    Connector TypePhone Jack
    GenderFemale
    Plug/Mating Plug Diameter3.50mm (0.141", 1/8", Mini Plug)
    Signal LinesMultiple
    Number of Positions/Contacts4 Conductors, 4 Contacts
    Mounting TypePanel Mount
    Features-
    ColorBlack
    TerminationSolder Eyelet(s)
    Internal Switch(s)Does Not Contain Switch
    ShieldingUnshielded
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names SJ 43502PM
    SJ43502PM
    CP 43502PM ND
    CP43502PMND
    CP-43502PM
