SJD-3510-45

CONN STEREO JACK 3.5MM 4/5P PCB

product image

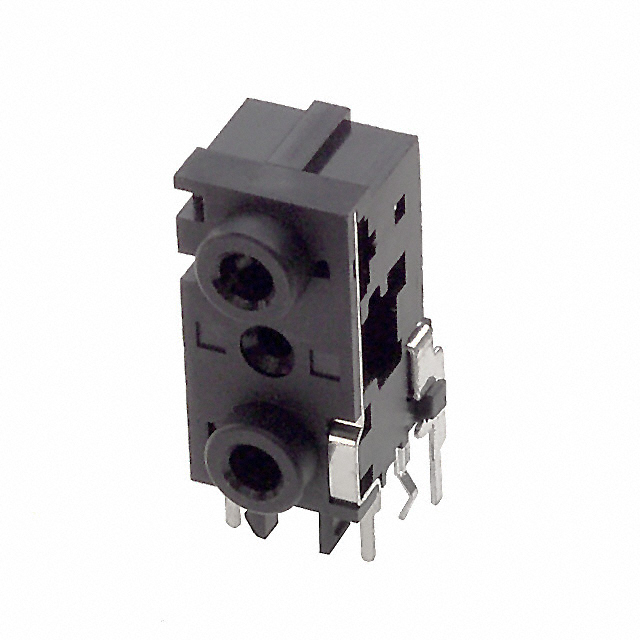

SJD-3510-45 Picture
See larger image
SeekIC No. : 003016298 Detail

SJD-3510-45: CONN STEREO JACK 3.5MM 4/5P PCB

SJD-3510-45 Data Sheet

floor Price/Ceiling Price

US $ .44~1.11 / Piece | Get Latest Price
Part Number:
SJD-3510-45
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~500
  • 500~1000
  • 1000~2500
  • Unit Price
  • $1.11
  • $.92
  • $.68
  • $.55
  • $.5
  • $.44
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: CUI Inc
Connector Type: Phone Jack, Dual Gender: Female
Signal Lines: Stereo Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Number of Positions/Contacts: 2 Sets of 3 Conductors, 9 Contacts Internal Switch(s): Single Switch, Two Switches
Maximum Reverse Leakage Current : 800 uA Mounting Type: Through Hole, Right Angle
Termination: Solder Shielding: Unshielded
Features: Board Lock

Description

Series: -
Manufacturer: CUI Inc
Gender: Female
Termination: Solder
Shielding: Unshielded
Color - Contact: Black
Signal Lines: Stereo
Plug/Mating Plug Diameter: 3.50mm (0.141", 1/8", Mini Plug) - Headphone
Mounting Type: Through Hole, Right Angle
Features: Board Lock
Connector Type: Phone Jack, Dual
Number of Positions/Contacts: 2 Sets of 3 Conductors, 9 Contacts
Internal Switch(s): Single Switch, Two Switches


Specifications

  • rating: 16 Vdc @ 0.3A
  • contact resistance: 50mΩ max
  • insulation resistance: 100MΩ min @ 500 Vdc
  • withstand voltage: 500 Vac for 1min
  • flammability: UL94V-0 rated
  • life: 5000 cycles
  • 640){this.height=this.height*640/this.width;this.width=640;}' border="0" alt=" Connection Diagram">



    • Parameters:

    Technical/Catalog InformationSJD-3510-45
    VendorCUI Inc
    CategoryConnectors
    Connector TypePhone Jack
    GenderFemale
    Plug/Mating Plug Diameter3.50mm (1/8", Mini Plug)
    Signal LinesStereo
    Number of Positions/Contacts2 Sets of 3 Conductors, 9 Contacts
    Mounting TypeThrough Hole, Right Angle
    FeaturesBoard Lock, Internal Switch
    ColorBlack
    TerminationSolder
    Lead Free StatusLead Free
    RoHS StatusRoHS Compliant
    Other Names SJD 3510 45
    SJD351045
    CP 351045 ND
    CP351045ND
    CP-351045
