SK100E151

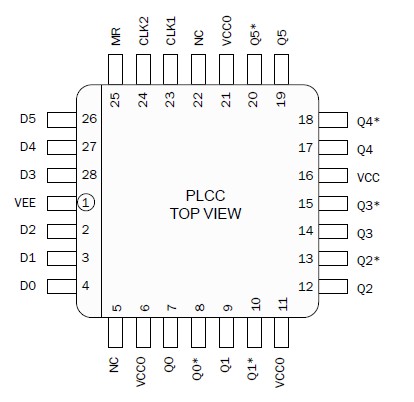

The SK10/100E151 offers 6 edge-triggered, high-speed, master-slave D-type flip-flops with differential outputs, designed for use in new high-performance ECL systems. SK10/100E151 is fully compatible with MC10E151 and MC100E151. The two external clock signals (CLK1, CLK2) are gated through a logical OR operation before use as clocking control for the flip-flops. Data is clocked into the flip-flops on the rising edge of either CLK1 or CLK2 (or both). When both CLK1 and CLK2 are at a logic LOW, data enters the master and is transferred to the slave when either CLK or CLK2 (or both) go HIGH.

The MR (Master Reset) signal SK10/100E151 operates asynchronously to make all Q outputs go to a logic LOW.
