Product Details

Description



Features:

• Extended Supply Voltage Range: (VEE = 5.5V to 3.0V, VCC = 0V) or (VCC = + 3.0V to +5.5V, VEE=0V)
• High Bandwidth Output Transition
• 230ps Propagation Delay
• 75K Internal Input Pulldown Resistors
• Fully Compatible with MC10/100EL01 and MC10/100LVEL01
• ESD Protection of >4000V
• Industrial Temperature Range: 40 to 85
• Available in 8-Pin SOIC (150 mils) Package


Pinout

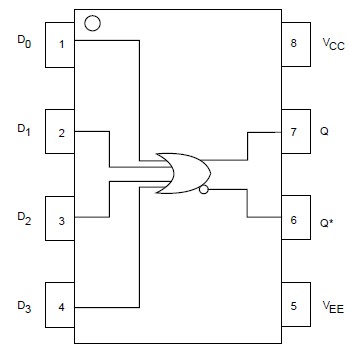

Connection Diagram


Description

The SK10/100EL01W is a 4-Input OR / NOR gate device. This device is fully compatible with MC10/100EL01 and MC10/100LVEL01. With output transition and propagation delay much faster than the E101, the SK10/100EL01W is ideally suited for those applications which require ultimate AC performance.
