SK100EL07

Features: • Extended Supply Voltage Range: (VEE = -5.5V to - 4.2V, VCC = 0V) or (VCC = +4.2V to + 5.5V)• High Bandwidth Output Transition• 260ps Propagation Delay• 75K Internal Input Pulldown Resistors• Fully Compatible with MC10/100EL07• ESD Protection >4000...

product image

SK100EL07 Picture
See larger image
SeekIC No. : 004491715 Detail

SK100EL07: Features: • Extended Supply Voltage Range: (VEE = -5.5V to - 4.2V, VCC = 0V) or (VCC = +4.2V to + 5.5V)• High Bandwidth Output Transition• 260ps Propagation Delay• 75K Intern...

SK100EL07 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SK100EL07
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extended Supply Voltage Range: (VEE = -5.5V to - 4.2V, VCC = 0V) or (VCC = +4.2V to + 5.5V)
• High Bandwidth Output Transition
• 260ps Propagation Delay
• 75K Internal Input Pulldown Resistors
• Fully Compatible with MC10/100EL07
• ESD Protection >4000V
• Industrial Temperature Range: 40oC to 85oC
• Available in 8-Pin SOIC (150 mils) Package


Pinout

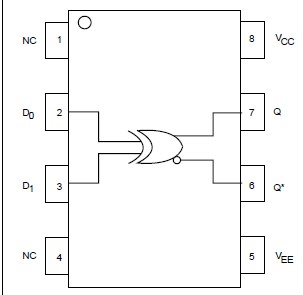

Connection Diagram


Description

The SK10/100EL07 is a 2-Input XOR / XNOR gate. This device is fully compatible with MC10/100EL07. With propagation delay and output transition time significantly faster than the E107, the SK10/100EL07 is ideally suited for those applications which require the ultimate in AC performance.
