SK10EL16TCD

Features: • Extended Supply Voltage Range (VEE = 5.5V to 3.0V, VCC = 0V) or (VCC = +3.0V to +5.5V, VEE = 0V)• High Bandwidth Output Transitions• 300 ps Propagation Delay• VBB Output• Internal Input Resistors: Pulldown on D, Pulldown and Pullup on D*• ESD Protect...

product image

SK10EL16TCD Picture
See larger image
SeekIC No. : 004491733 Detail

SK10EL16TCD: Features: • Extended Supply Voltage Range (VEE = 5.5V to 3.0V, VCC = 0V) or (VCC = +3.0V to +5.5V, VEE = 0V)• High Bandwidth Output Transitions• 300 ps Propagation Delay• VBB...

SK10EL16TCD Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SK10EL16TCD
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extended Supply Voltage Range (VEE = 5.5V to 3.0V, VCC = 0V) or (VCC = +3.0V to +5.5V, VEE = 0V)
• High Bandwidth Output Transitions
• 300 ps Propagation Delay
• VBB Output
• Internal Input Resistors: Pulldown on D, Pulldown and Pullup on D*
• ESD Protection of >4000V
• Specified Over Industrial Temperature Range:
40oC to 85oC
• Available in 8 Pin SOIC Package


Pinout

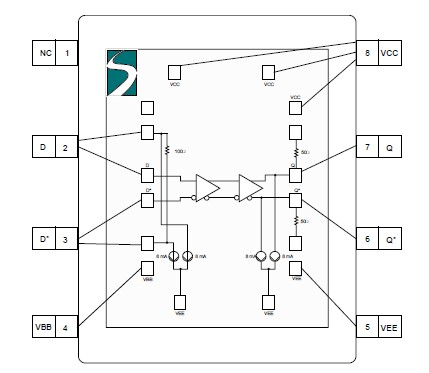

Connection Diagram


Description

The SK10/100EL16TA-TD are differential receivers with optional input/output terminations. The EL16TA-TD family is pin-to-pin compatible with SK10/100EL16W and Motorola's MC10/100EL16 and MC10/100LVEL16, with added features of input/output terminations. The different options of input/output terminations of the EL16TA-TD make them ideal for use in high frequency design applications. SK10/100EL16TA-TD can also reduce the part count where board space is scarce.

The SK10/100EL16TA has a 100 resistor across its differential inputs. The output of this device has emitter follower structure and must be terminated with 50 to 2V. SK10/100EL16TA-TD is used in applications where the driving source has terminated outputs. Please refer to Figure 1 for more details.

The SK10/100EL16TB has a 100 resistor and 8 mA current sources across its differential inputs. The latter will provide a DC path for the output currents of the driving source. The output of this device has emitter follower structure and must be terminated with 50 to 2V. SK10/100EL16TA-TD is used in applications where the driving source may not need output termination. Please refer to Figure 2 for more details.

The SK10/100EL16TC has a 100 resistor across its differential inputs and 8 mA current sources across its differential outputs. SK10/100EL16TA-TD is used in applications where the driving source may not need output termination. Please refer to Figure 3 for more details.

The SK10/100EL16TD has a 100 resistor across its differential inputs, 50 series resistance, and 8 mA current sources at its outputs. The outputs of this device may not need any termination because of the internal output 50 series resistor and current source. SK10/100EL16TA-TD is used in applications where the driving source may not need output termination. Please refer to Figure 4 for more details.

The SK10/100EL16TA-TD provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the EL16TA-TD as its current sink/source capability is limited. Whenever used, the VBB pin of SK10/100EL16TA-TD should be bypassed to VCC via a 0.01 F capacitor.
